NMPSM3概述
在UCSC扩展学院上了第一门FPGA课后，我对这些设备为普通人提供的功能感到惊讶，我决定更深入地研究它们。我最终意识到我有足够的逻辑设计知识，可以构建自己的简单处理器。在了解了KCPSM（nanoblaze）之后，我开始构建自己的处理器，并将其称为NMPSM（Nick Mikstas可编程状态机）。我花了三遍迭代才能制作出功能全面的处理器，因此命名为NMPSM3。即使NMPSM3受到nanoblaze IO方案的启发，其内部结构也完全不同。NMPSM3是具有四个独立中断和一个复位的16位处理器。NMPSM至少需要实现四个18Kb BRAMS：一个用于寄存器，一个用于堆栈，一个用于解码器，至少一个用于程序ROM。使处理器正常工作后，我为其编写了汇编程序，并创建了一个大型项目以展示其功能。
本文引用地址：https://www.eepw.com.cn/article/202409/463060.htm当我第一次设计NMPSM3时，它是在Digilent Nexys 2板上实现的。Nexys 2上有Xilinx Spartan 3部件。在成功实施该项目之后，几年来我对NMPSM3一无所获。我最终在SCU上了一门课，基本上和UCSC Extension上的一门课一样。我决定通过更新项目以使其在Digilent Basys 3 FPGA板上工作来使NMPSM3振作起来。由于新的FPGA部件（Artyx 7）比Spartan 3具有更多的功能，因此我也对该项目进行了一些升级。我也写了一份详尽的报告。
NMPSM3报告

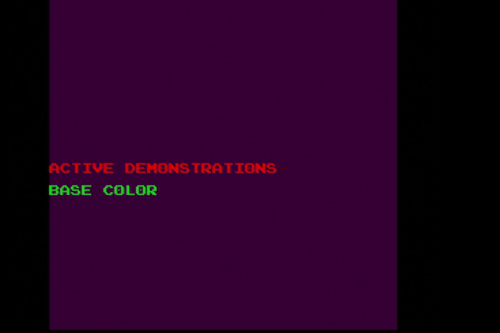

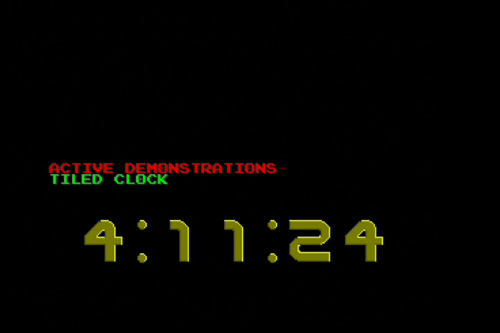

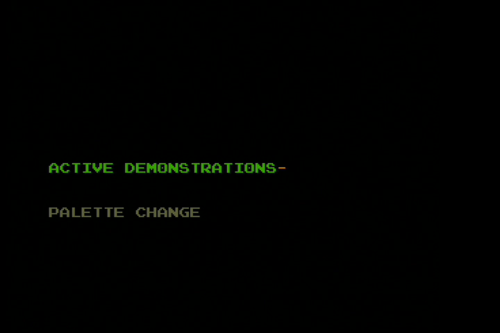

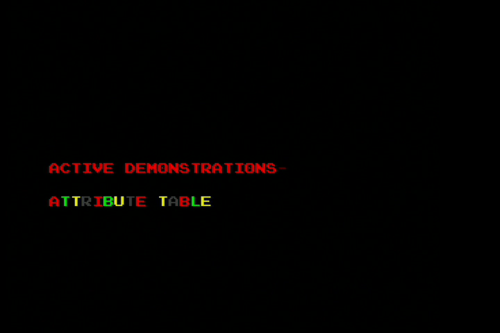

NMPSM3屏幕截图
NMPSM3硬件
Final_Project.v
`timescale 1ns / 1ps module Final_Project(
input clk, input [15:0]sw, input btnC,
input btnU,
input btnD,
input btnL,
input btnR, input data, input RsRx,
output RsTx, output RxTest,
output TxTest, output [15:0]led, output [6:0]seg,
output [3:0]an,
output dp, output [3:0]vgaRed,
output [3:0]vgaGreen,
output [3:0]vgaBlue,
output Hsync,
output Vsync, output sclk,
output ce ); //UART test ports.
assign RxTest = RsRx;
assign TxTest = RsTx; wire clk100MHz;
wire clk50MHz;
wire clk25MHz;
wire t0out;
wire t1out;
wire ack0;
wire ack1;
wire ack2;
wire ack3;
wire sigout0;
wire sigout1;
wire sigout2;
wire sigout3;
wire ce1k;
wire blink;
wire read;
wire write;
wire vblank;
wire reset;
wire [15:0]id;
wire [15:0]outdata;
wire [7:0]hour;
wire [7:0]min;
wire [7:0]sec;
wire [35:0]inst;
wire [15:0]in_port;
wire [15:0]address;
wire [7:0]romdata;
wire [11:0]mdout;
wire [7:0]vgadata;
wire [9:0]addr;
wire [10:0]romaddress;
wire [11:0]mdin; //UART wires.
wire [7:0]uartdata;
wire [11:0]txcount;
wire [11:0]rxcount; //Unused VGA bits in this design.
assign vgaRed[0] = 1'b0;
assign vgaGreen[0] = 1'b0;
assign vgaBlue[0] = 1'b0;
assign vgaBlue[1] = 1'b0; //Reset signal.
assign reset = btnU; //Flip-flop for interrupt 0.
FF ff0(.set(t0out), .reset(ack0), .sigout(sigout0)); //Flip-flop for interrupt 1.
FF ff1(.set(t1out), .reset(ack1), .sigout(sigout1)); //Flip-flop for interrupt 2.
FF ff2(.set(vblank), .reset(ack2), .sigout(sigout2)); //Flip-flop for interrupt 3(not used).
FF ff3(.set(1'b0), .reset(ack3), .sigout(sigout3)); //Divide by 100,000.
div100k divideBy100K(.clock(clk100MHz), .ce1k(ce1k)); //Clock divider.
clk25 c(.clk_in1(clk), .clk_out1(clk100MHz), .clk_out2(clk50MHz), .clk_out3(clk25MHz)); //NMPSM3 soft processor.
NMPSM3 nmpsm3(.clk(clk100MHz), .reset(reset), .IRQ0(sigout0), .IRQ1(sigout1), .IRQ2(sigout2), .IRQ3(sigout3),
.INSTRUCTION(inst), .IN_PORT(in_port), .READ_STROBE(read), .WRITE_STROBE(write), .IRQ_ACK0(ack0),
.IRQ_ACK1(ack1), .IRQ_ACK2(ack2), .IRQ_ACK3(ack3), .ADDRESS(address), .OUT_PORT(outdata),
.PORT_ID(id)); //Program ROM for NMPSM3.
Program_ROM prgROM(.clka(clk100MHz), .addra(address[9:0]), .douta(inst)); //Lookup ROM
Lookup_ROM lookuprom(.clka(clk100MHz), .addra(romaddress), .douta(romdata)); //UART
uart uart1(.clk(clk100MHz), .reset(reset), .id(id), .din(outdata), .write(write), .rx(RsRx), .tx(RsTx),
.dout(uartdata), .rxcount(rxcount), .txcount(txcount)); //LED output controller.
ledio LEDIO(.clk(clk100MHz), .reset(reset), .write(write), .id(id), .din(outdata), .ledsout(led[7:0])); //LED output controller 2.
LEDIO2 ledio2(.clk(clk100MHz), .reset(reset), .write(write), .id(id), .din(outdata), .ledsout(led[15:8])); //Seven segment controller.
seg7io seg7control(.clk(clk100MHz), .ce1k(ce1k), .write(write), .reset(reset), .id(id), .din(outdata),
.segselect(an), .segs({dp,seg})); //Timer 0.
timer0 time0(.clk(clk100MHz), .cein(ce1k), .write(write), .reset(reset), .id(id), .din(outdata), .dout(t0out)); //Timer 1.
timer1 time1(.clk(clk100MHz), .cein(ce1k), .write(write), .reset(reset), .id(id), .din(outdata), .dout(t1out)); //ROM controller for lookup ROM.
ROMcontroller ROMcontrol(.clk(clk100MHz), .id(id), .ain(outdata), .aout(romaddress)); //Processor input data MUX.
dataMUX datamux(.read(read), .blink(blink), .id(id), .i2cdata(16'd0), .i2cstatus(16'd0), .xpos(16'd0), .ypos(16'd0),
.uartdata({8'h00,uartdata}), .txcount(txcount), .rxcount(rxcount), .romdata(romdata),
.switches(sw), .sec(sec), .min(min), .hour(hour), .micdata({btnD, 3'h0, mdout}),
.dout(in_port)); //Clock control.
ClockControl clockcontrol(.clock(clk100MHz), .ce_1KHz(ce1k), .button({btnD, btnL, btnC, btnR}), .blink(blink),
.hour(hour), .min(min), .sec(sec)); //Picture processing unit.
VGA ppu(.clk25MHz(clk25MHz), .clk(clk100MHz), .write(write), .id(id), .data(outdata[7:0]),
.vblank(vblank), .vsync(Vsync), .hsync(Hsync), .vga({vgaBlue[3:2], vgaGreen[3:1], vgaRed[3:1]})); //Microphone control.
MControl mc(.clk(clk100MHz), .reset(reset), .serialdata(data), .nenable(ce), .sclk(sclk), .micdata(mdout)); endmoduleNMPSM3.v
`timescale 1ns / 1ps module NMPSM3(clk, reset, INSTRUCTION, IN_PORT, IRQ0, IRQ1, IRQ2, IRQ3,
ADDRESS, OUT_PORT, PORT_ID, READ_STROBE, WRITE_STROBE,
IRQ_ACK0, IRQ_ACK1, IRQ_ACK2, IRQ_ACK3); input clk, reset, IRQ0, IRQ1, IRQ2, IRQ3;
input [35:0]INSTRUCTION;
input [15:0]IN_PORT;
output READ_STROBE, WRITE_STROBE, IRQ_ACK0, IRQ_ACK1, IRQ_ACK2, IRQ_ACK3;
output [15:0]PORT_ID;
output [15:0]OUT_PORT;
output [15:0]ADDRESS; localparam SIZE = 16; localparam JPNZ = 8'h16;
localparam JPZ = 8'h19;
localparam JPNC = 8'h1C;
localparam JPC = 8'h20; localparam CLNZ = 8'h29;
localparam CLZ = 8'h2C;
localparam CLNC = 8'h30;
localparam CLC = 8'h33; localparam RTNZ = 8'h39;
localparam RTZ = 8'h3C;
localparam RTNC = 8'h40;
localparam RTC = 8'h43; localparam IRQADDR0 = 8'hCC;
localparam IRQADDR1 = 8'hD0;
localparam IRQADDR2 = 8'hD3;
localparam IRQADDR3 = 8'hD6; localparam STEP = 8'hD9; wire [43:0]control;
wire [15:0]portA;
wire [15:0]portB;
wire zero;
wire [7:0]decodeAddr;
wire I0, I1, I2, I3;
wire [15:0]addrp1;
wire [10:0] addrA;
wire [15:0] dataA;
wire weA;
wire [10:0] addrB;
wire [15:0] dataB;
wire weB;
wire [9:0]stackm1;
wire [19:0]none;
wire [7:0]portAup;
wire [7:0]portAdn;
wire [7:0]portBup;
wire [7:0]portBdn;
wire [4:0]sel;
wire [15:0]a;
wire [15:0]b;
wire [15:0]inst; reg [1:0]IRQload = 2'b00;
reg [15:0]wresult = 16'h0000;
reg wcarry = 1'b0;
reg [15:0]result = 16'h0000;
reg carry = 1'b0;
reg [1:0]load = 2'b00;
reg IRQMreg = 1'b1;
reg IRQ0reg = 1'b0;
reg IRQ1reg = 1'b0;
reg IRQ2reg = 1'b0;
reg IRQ3reg = 1'b0;
reg [9:0]stack = 10'h000;
reg [15:0]addr = 16'h0000; //Used to synchronize interrupts and reset with internal clock.
reg IR0 = 1'b0;
reg IR1 = 1'b0;
reg IR2 = 1'b0;
reg IR3 = 1'b0;
reg [1:0]rst = 2'b00;
RAMB16_S36_S36 #(
.INIT_A(36'h000000000), // Value of output RAM registers on Port A at startup
.INIT_B(36'h000000000), // Value of output RAM registers on Port B at startup
.SRVAL_A(36'h000000000), // Port A output value upon SSR assertion
.SRVAL_B(36'h000000000), // Port B output value upon SSR assertion
.WRITE_MODE_A("WRITE_FIRST"), // WRITE_FIRST, READ_FIRST or NO_CHANGE
.WRITE_MODE_B("WRITE_FIRST"), // WRITE_FIRST, READ_FIRST or NO_CHANGE
.SIM_COLLISION_CHECK("ALL"), // "NONE", "WARNING_ONLY", "GENERATE_X_ONLY", "ALL" // Micro-code for the decoder ROM
.INIT_00(256'H00200001_00000000_00000000_04040007_00000000_00000000_04000007_00000000),
.INIT_01(256'H00000000_08200007_00000001_00000000_00000000_08000007_00000000_04040007),
.INIT_02(256'H00000000_0000000B_00000000_00000000_0000000F_00000000_00000000_0000000B),
.INIT_03(256'H00000000_00000000_00000000_0000000B_00000000_00000000_0000000B_00000000),
.INIT_04(256'H00000000_1950000F_00000000_00000000_1950000B_00000000_00000000_0000000B),
.INIT_05(256'H00000000_00000000_00000000_1950000B_00000000_00000000_1950000B_00000000),
.INIT_06(256'H00000017_12300001_00000000_00000000_1950000B_00000000_00000000_1950000B),
.INIT_07(256'H00000000_00000000_00000017_12300001_00000000_00000017_12300001_00000000),
.INIT_08(256'H00001137_12300001_00000000_00000017_12300001_00000000_00000017_12300001),
.INIT_09(256'H00000000_00000000_00000000_44080407_00000000_00001157_12300001_00000000),
.INIT_0A(256'H00000000_20000A07_00000000_00000000_20000C07_00000000_00000000_44080207),
.INIT_0B(256'H00000000_00000000_00000000_04065007_00000000_00000000_04064007_00000000),
.INIT_0C(256'H00000000_04066007_00000000_00000000_04063007_00000000_00000000_04062007),
.INIT_0D(256'H00000000_00000000_00000000_0406C007_00000000_00000000_04067007_00000000),
.INIT_0E(256'H00000000_04069007_00000000_00000000_0406D007_00000000_00000000_04068007),
.INIT_0F(256'H00000000_00000000_00000000_0406A007_00000000_00000000_0406E007_00000000),
.INIT_10(256'H00000000_00010007_00000000_00000000_0406B007_00000000_00000000_0406F007),
.INIT_11(256'H00000000_00000000_00000000_00012007_00000000_00000000_00011007_00000000),
.INIT_12(256'H00000000_04075007_00000000_00000000_04074007_00000000_00000000_00013007),
.INIT_13(256'H00000000_00000000_00000000_04077007_00000000_00000000_04076007_00000000),
.INIT_14(256'H00000000_00000027_00000000_00000000_00018007_00000000_00000000_00019007),
.INIT_15(256'H00000000_00000000_00000000_00000067_00000000_00000000_00000047_00000000),
.INIT_16(256'H00000000_000000C7_00000000_00000000_000000A7_00000000_00000000_00000087),
.INIT_17(256'H00000000_00000000_00000000_00000107_00000000_00000000_000000E7_00000000),
.INIT_18(256'H04040007_12300001_00000000_00000000_00000000_00000000_00000000_19100007),
.INIT_19(256'H00000000_00000000_80000013_99900161_00000000_00000000_00000000_00000000),
.INIT_1A(256'H00000013_19900161_00000000_00000013_19900161_00000000_00000013_19900161),
.INIT_1B(256'H00000000_00000000_00000000_00000000_00000000_00000000_00000007_00000000),
.INIT_1C(256'H00000000_00000000_00000000_00000000_00000000_00000000_00000000_00000000),
.INIT_1D(256'H00000000_00000000_00000000_00000000_00000000_00000000_00000000_00000000),
.INIT_1E(256'H00000000_00000000_00000000_00000000_00000000_00000000_00000000_00000000),
.INIT_1F(256'H00000000_00000000_00000000_00000000_00000000_00000000_00000000_00000000),
.INIT_20(256'H00000080_00000000_00000000_00000000_00000000_00000000_00000000_00000000),
.INIT_21(256'H00000000_00000000_000000E0_00000000_00000000_00000000_00000000_00000000),
.INIT_22(256'H00000000_00000000_00000000_00000000_00000000_00000000_00000000_00000000),
.INIT_23(256'H00000000_00000000_00000000_00000000_00000000_00000000_00000000_00000000),
.INIT_24(256'H00000000_00000000_00000000_00000000_00000000_00000000_00000000_00000000),
.INIT_25(256'H00000000_00000000_00000000_00000000_00000000_00000000_00000000_00000000),
.INIT_26(256'H00000000_00000370_00000000_00000000_00000000_00000000_00000000_00000000),
.INIT_27(256'H00000000_00000000_00000000_000003D0_00000000_00000000_000003A0_00000000),
.INIT_28(256'H00000000_00000470_00000000_00000000_00000440_00000000_00000000_00000410),
.INIT_29(256'H00000000_00000000_00000000_00000000_00000000_00000000_000004A0_00000000),
.INIT_2A(256'H00000000_00000000_00000000_00000000_00000000_00000000_00000000_00000000),
.INIT_2B(256'H00000000_00000000_00000000_00000000_00000000_00000000_00000000_00000000),
.INIT_2C(256'H00000000_00000000_00000000_00000000_00000000_00000000_00000000_00000000),
.INIT_2D(256'H00000000_00000000_00000000_00000000_00000000_00000000_00000000_00000000),
.INIT_2E(256'H00000000_00000000_00000000_00000000_00000000_00000000_00000000_00000000),
.INIT_2F(256'H00000000_00000000_00000000_00000000_00000000_00000000_00000000_00000000),
.INIT_30(256'H00000000_00000000_00000000_00000000_00000000_00000000_00000000_00000000),
.INIT_31(256'H00000000_00000000_00000000_00000000_00000000_00000000_00000000_00000000),
.INIT_32(256'H00000000_00000000_00000000_00000000_00000000_00000000_00000000_00000000),
.INIT_33(256'H00000000_00000000_00000000_00000000_00000000_00000000_00000000_00000000),
.INIT_34(256'H00000000_00000000_00000000_00000000_00000000_00000000_00000000_00000000),
.INIT_35(256'H00000000_00000000_00000000_00000000_00000000_00000000_00000000_00000000),
.INIT_36(256'H00000000_00000000_00000000_00000000_00000000_00000000_00000000_00000000),
.INIT_37(256'H00000000_00000000_00000000_00000000_00000000_00000000_00000000_00000000),
.INIT_38(256'H00000000_00000C70_00000000_00000000_00000000_00000000_00000000_00000000),
.INIT_39(256'H00000000_00000000_00000000_00000CD8_00000000_00000000_00000000_00000000),
.INIT_3A(256'H00000004_00000D6C_00000000_00000002_00000D4A_00000000_00000001_00000D19),
.INIT_3B(256'H00000000_00000000_00000000_00000000_00000000_00000000_00000000_00000000),
.INIT_3C(256'H00000000_00000000_00000000_00000000_00000000_00000000_00000000_00000000),
.INIT_3D(256'H00000000_00000000_00000000_00000000_00000000_00000000_00000000_00000000),
.INIT_3E(256'H00000000_00000000_00000000_00000000_00000000_00000000_00000000_00000000),
.INIT_3F(256'H00000000_00000000_00000000_00000000_00000000_00000000_00000000_00000000))
DecoderROM (
.DOA(control[31:0]), // Port A 32-bit Data Output
.DOB({none, control[43:32]}), // Port B 32-bit Data Output
.ADDRA({1'b0, decodeAddr}), // Port A 9-bit Address Input
.ADDRB({1'b1, decodeAddr}), // Port B 9-bit Address Input
.CLKA(clk), // Port A Clock
.CLKB(clk), // Port B Clock
.ENA(1'b1), // Port A RAM Enable Input
.ENB(1'b1), // Port B RAM Enable Input
.SSRA(1'b0), // Port A Synchronous Set/Reset Input
.SSRB(1'b0), // Port B Synchronous Set/Reset Input
.WEA(1'b0), // Port A Write Enable Input
.WEB(1'b0) // Port B Write Enable Input
);
RAMB16_S9_S9 #(
.INIT_A(18'h00000), // Value of output RAM registers on Port A at startup
.INIT_B(18'h00000), // Value of output RAM registers on Port B at startup
.SRVAL_A(18'h00000), // Port A output value upon SSR assertion
.SRVAL_B(18'h00000), // Port B output value upon SSR assertion
.WRITE_MODE_A("WRITE_FIRST"), // WRITE_FIRST, READ_FIRST or NO_CHANGE
.WRITE_MODE_B("WRITE_FIRST"), // WRITE_FIRST, READ_FIRST or NO_CHANGE
.SIM_COLLISION_CHECK("ALL")) // "NONE", "WARNING_ONLY", "GENERATE_X_ONLY", "ALL"
RAMupper (
.DOA(portAup), // Port A 16-bit Data Output
.DOB(portBup), // Port B 16-bit Data Output
.ADDRA(addrA), // Port A 10-bit Address Input
.ADDRB(addrB), // Port B 10-bit Address Input
.CLKA(clk), // Port A Clock
.CLKB(clk), // Port B Clock
.DIA(dataA[15:8]), // Port A 16-bit Data Input
.DIB(dataB[15:8]), // Port-B 16-bit Data Input
.DIPA(1'b0), // Port A 1-bit parity Input
.DIPB(1'b0), // Port B 1-bit parity Input
.ENA(1'b1), // Port A RAM Enable Input
.ENB(1'b1), // Port B RAM Enable Input
.SSRA(1'b0), // Port A Synchronous Set/Reset Input
.SSRB(1'b0), // Port B Synchronous Set/Reset Input
.WEA(weA), // Port A Write Enable Input
.WEB(weB) // Port B Write Enable Input
);
RAMB16_S9_S9 #(
.INIT_A(18'h00000), // Value of output RAM registers on Port A at startup
.INIT_B(18'h00000), // Value of output RAM registers on Port B at startup
.SRVAL_A(18'h00000), // Port A output value upon SSR assertion
.SRVAL_B(18'h00000), // Port B output value upon SSR assertion
.WRITE_MODE_A("WRITE_FIRST"), // WRITE_FIRST, READ_FIRST or NO_CHANGE
.WRITE_MODE_B("WRITE_FIRST"), // WRITE_FIRST, READ_FIRST or NO_CHANGE
.SIM_COLLISION_CHECK("ALL")) // "NONE", "WARNING_ONLY", "GENERATE_X_ONLY", "ALL"
RAMlower (
.DOA(portAdn), // Port A 16-bit Data Output
.DOB(portBdn), // Port B 16-bit Data Output
.ADDRA(addrA), // Port A 10-bit Address Input
.ADDRB(addrB), // Port B 10-bit Address Input
.CLKA(clk), // Port A Clock
.CLKB(clk), // Port B Clock
.DIA(dataA[7:0]), // Port A 16-bit Data Input
.DIB(dataB[7:0]), // Port-B 16-bit Data Input
.DIPA(1'b0), // Port A 1-bit parity Input
.DIPB(1'b0), // Port B 1-bit parity Input
.ENA(1'b1), // Port A RAM Enable Input
.ENB(1'b1), // Port B RAM Enable Input
.SSRA(1'b0), // Port A Synchronous Set/Reset Input
.SSRB(1'b0), // Port B Synchronous Set/Reset Input
.WEA(weA), // Port A Write Enable Input
.WEB(weB) // Port B Write Enable Input
); always @(posedge clk) begin
if(rst) begin
carry <= 1'b0;
IRQMreg <= 1'b1;
IRQ0reg <= 1'b0;
IRQ1reg <= 1'b0;
IRQ2reg <= 1'b0;
IRQ3reg <= 1'b0;
stack <= 10'h000;
result <= 16'h0000;
addr <= 16'h0000;
load <= 2'b00;
rst <= rst + 1'b1;
end
else begin
result <= wresult;
carry <= wcarry;
if(control[1])
addr <= ADDRESS;
if(control[25:24] == 2'b01)
stack <= stack + 1'b1;
if(control[25:24] == 2'b10)
stack <= stack - 1'b1;
if(control[8:5] == 4'b0001)
IRQ0reg <=1'b1;
if(control[8:5] == 4'b0010)
IRQ1reg <=1'b1;
if(control[8:5] == 4'b0011)
IRQ2reg <=1'b1;
if(control[8:5] == 4'b0100)
IRQ3reg <=1'b1;
if(control[8:5] == 4'b0101)
IRQ0reg <=1'b0;
if(control[8:5] == 4'b0110)
IRQ1reg <=1'b0;
if(control[8:5] == 4'b0111)
IRQ2reg <=1'b0;
if(control[8:5] == 4'b1000)
IRQ3reg <=1'b0;
if(control[8:5] == 4'b1001)
IRQMreg <=1'b1;
if(control[8:5] == 4'b1010) begin
IRQMreg <= 1'b1;
IRQ0reg <= 1'b0;
IRQ1reg <= 1'b0;
IRQ2reg <= 1'b0;
IRQ3reg <= 1'b0;
end
if(control[8:5] == 4'b1011)
IRQMreg <= 1'b0;
if(control[35])
load <= {carry, ~zero};
//Synchronize interrupts and reset with the internal clock.
if(IRQ0)
IR0 <= 1'b1;
else
IR0 <= 1'b0;
if(IRQ1)
IR1 <= 1'b1;
else
IR1 <= 1'b0;
if(IRQ2)
IR2 <= 1'b1;
else
IR2 <= 1'b0;
if(IRQ3)
IR3 <= 1'b1;
else
IR3 <= 1'b0;
if (reset)
rst <= 2'b01;
end
end assign IRQ_ACK0 = control[31];
assign IRQ_ACK1 = control[32];
assign IRQ_ACK2 = control[33];
assign IRQ_ACK3 = control[34]; always @(control)
case(control[33:31])
3'b001 : IRQload <= 2'h1;
3'b010 : IRQload <= 2'h2;
3'b100 : IRQload <= 2'h3;
default : IRQload <= 2'h4;
endcase and andIRQ0 (I0, IRQMreg, IRQ0reg, IR0);
and andIRQ1 (I1, IRQMreg, IRQ1reg, IR1);
and andIRQ2 (I2, IRQMreg, IRQ2reg, IR2);
and andIRQ3 (I3, IRQMreg, IRQ3reg, IR3); assign decodeAddr = control[0] ? control[43:36] :
({control[0], I0} == 2'b01) ? IRQADDR0 :
({control[0], I0, I1} == 3'b001) ? IRQADDR1 :
({control[0], I0, I1, I2} == 4'b0001) ? IRQADDR2 :
({control[0], I0, I1, I2, I3} == 5'b00001) ? IRQADDR3 :
({zero, INSTRUCTION[35:28]} == {1'b1, JPNZ}) ? STEP :
({zero, INSTRUCTION[35:28]} == {1'b0, JPZ }) ? STEP :
({carry, INSTRUCTION[35:28]} == {1'b1, JPNC}) ? STEP :
({carry, INSTRUCTION[35:28]} == {1'b0, JPC }) ? STEP :
({zero, INSTRUCTION[35:28]} == {1'b1, CLNZ}) ? STEP :
({zero, INSTRUCTION[35:28]} == {1'b0, CLZ }) ? STEP :
({carry, INSTRUCTION[35:28]} == {1'b1, CLNC}) ? STEP :
({carry, INSTRUCTION[35:28]} == {1'b0, CLC }) ? STEP :
({zero, INSTRUCTION[35:28]} == {1'b1, RTNZ}) ? STEP :
({zero, INSTRUCTION[35:28]} == {1'b0, RTZ }) ? STEP :
({carry, INSTRUCTION[35:28]} == {1'b1, RTNC}) ? STEP :
({carry, INSTRUCTION[35:28]} == {1'b0, RTC }) ? STEP :
INSTRUCTION[35:28]; assign PORT_ID = (control[10:9] == 2'b01) ? portB :
(control[10:9] == 2'b10) ? INSTRUCTION[15:0] :
16'h0000; assign OUT_PORT = (control[11] == 1'b1) ? portA : 16'h0000; assign WRITE_STROBE = control[29]; assign READ_STROBE = control[30]; assign stackm1 = stack - 1'b1; assign weA = control[26];
assign weB = control[27]; assign addrA = {1'b0, INSTRUCTION[25:16]}; assign portA = {portAup, portAdn}; assign portB = {portBup, portBdn}; assign dataA = (control[19:17] == 3'b001) ? portA :
(control[19:17] == 3'b010) ? portB :
(control[19:17] == 3'b011) ? wresult :
(control[19:17] == 3'b100) ? IN_PORT :
INSTRUCTION[15:0]; assign addrB = (control[21:20] == 2'b01) ? {control[28], stack[9:0]} :
(control[21:20] == 2'b10) ? {control[28], portB[9:0]} :
(control[21:20] == 2'b11) ? {control[28], stackm1[9:0]} :
{control[28], INSTRUCTION[9:0]}; assign dataB = (control[23:22] == 2'b01) ? addrp1 :
(control[23:22] == 2'b10) ? ADDRESS :
portA; assign addrp1 = addr + 1'b1; assign ADDRESS = rst ? 16'h0000 :
(control[4:2] == 3'b001) ? addrp1 :
(control[4:2] == 3'b010) ? INSTRUCTION[15:0] :
(control[4:2] == 3'b011) ? portA :
(control[4:2] == 3'b100) ? {14'h0000,IRQload}:
(control[4:2] == 3'b101) ? portB :
addr; //ALU code begins here.
assign zero = (result == 16'h0000) ? 1'b1 : 1'b0; assign inst = INSTRUCTION[15:0];
assign a = portA;
assign b = portB;
assign sel = control[16:12]; //OR a | b, a | inst
wire orc;
wire [15:0]orr; assign orc = 1'b0;
assign orr = sel[0] ? (a | b) : (a | inst); //AND a & b, a & inst
wire andc;
wire [15:0]andr; assign andc = 1'b0;
assign andr = sel[0] ? (a & b) : (a & inst); //XOR a ^ b, a ^ inst
wire xorc;
wire [15:0]xorr; assign xorc = 1'b0;
assign xorr = sel[0] ? (a ^ b) : (a ^ inst); //ADD ADD a + b, ADDC a + b
wire addbcarryin, addbcarryout;
wire [15:0]addbresult; assign addbcarryin = sel[0] ? carry : 1'b0;
assign {addbcarryout, addbresult} = a + b + addbcarryin; //SUB SUB a - b, SUBC a - b
wire subbcarryin, subbcarryout;
wire [15:0]subbresult; assign subbcarryin = sel[0] ? carry : 1'b0;
assign {subbcarryout, subbresult} = a - b - subbcarryin; //ADD ADD a + inst, ADDC a + inst
wire addicarryin, addicarryout;
wire [15:0]addiresult; assign addicarryin = sel[0] ? carry : 1'b0;
assign {addicarryout, addiresult} = a + inst + addicarryin; //SUB SUB a - inst, SUBC a - inst
wire subicarryin, subicarryout;
wire [15:0]subiresult; assign subicarryin = sel[0] ? carry : 1'b0;
assign {subicarryout, subiresult} = a - inst - subicarryin; //TEST TEST a and b, TEST a and inst
wire testc;
wire [15:0]testr; assign testc = ^testr;
assign testr = sel[0] ? (a & b) : (a & inst); //COMP COMP a to b, COMP a to inst
wire tempc1, tempc2, compc;
wire [15:0]compr; assign tempc1 = (a < inst) ? 1'b1 : 1'b0;
assign tempc2 = (a < b) ? 1'b1 : 1'b0; assign compc = sel[0] ? tempc2 : tempc1;
assign compr = sel[0] ? (a ^ b) : (a ^ inst); //LEFT ROL, ASL
wire leftc;
wire [15:0]leftr; assign leftc = a[15];
assign leftr = sel[0] ? {a[14:0], carry} : {a[14:0], 1'b0}; //RIGHT ROR, LSR
wire rightc;
wire [15:0]rightr; assign rightc = a[0];
assign rightr = sel[0] ? {carry, a[15:1]} : {1'b0, a[15:1]}; //CARRY SETC, CLRC
wire carryc;
wire [15:0]carryr; assign carryc = sel[0];
assign carryr = result; //LOAD LOAD carry and result with load, no change.
wire loadc;
wire [15:0]loadr; assign loadc = sel[0] ? load[1] : carry;
assign loadr = sel[0] ? {15'h0000, load[0]} : result; //MUX results
always @(*)
case(sel[4:1])
4'b0000 : wresult <= loadr;
4'b0001 : wresult <= orr;
4'b0010 : wresult <= andr;
4'b0011 : wresult <= xorr;
4'b0100 : wresult <= addbresult;
4'b0101 : wresult <= subbresult;
4'b0110 : wresult <= addiresult;
4'b0111 : wresult <= subiresult;
4'b1000 : wresult <= testr;
4'b1001 : wresult <= compr;
4'b1010 : wresult <= leftr;
4'b1011 : wresult <= rightr;
4'b1100 : wresult <= carryr;
default : wresult <= loadr;
endcase always @(*)
case(sel[4:1])
4'b0000 : wcarry <= loadc;
4'b0001 : wcarry <= orc;
4'b0010 : wcarry <= andc;
4'b0011 : wcarry <= xorc;
4'b0100 : wcarry <= addbcarryout;
4'b0101 : wcarry <= subbcarryout;
4'b0110 : wcarry <= addicarryout;
4'b0111 : wcarry <= subicarryout;
4'b1000 : wcarry <= testc;
4'b1001 : wcarry <= compc;
4'b1010 : wcarry <= leftc;
4'b1011 : wcarry <= rightc;
4'b1100 : wcarry <= carryc;
default : wcarry <= loadc;
endcase endmoduleVGA.v
`timescale 1ns / 1ps //Address ports://0x8000 - 0x87FF Background pattern table A.//0x8800 - 0x8FFF Background pattern table B.//0x9000 - 0x97FF Sprite pattern table A.//0x9800 - 0x9FFF Sprite pattern table B.//0xA000 - 0xA3FF Name table.//0xA400 - 0xA4FF Unused.//0xA500 - 0xA5FF Background attribute table.//0xA600 - 0xA60F Background pallettes 0 through 15.//0xA610 - 0xA61F Sprite pallettes 0 through 15.//0xA700 Base color (background color).//0xB000 - 0xB3FF Sprite RAM (256 sprites). module VGA(
input clk25MHz,
input clk,
input write,
input [15:0]id,
input [7:0]data,
output reg vblank = 1'b0,
output reg vsync = 1'b1,
output reg hsync = 1'b1,
output reg [7:0]vga = 8'h00
); parameter WAIT = 5'h00;
parameter NTAT = 5'h01;
parameter PTAB = 5'h02;
parameter BUFF = 5'h03;
parameter NEXT = 5'h04;
parameter SPRAM = 5'h05;
parameter SAB = 5'h06;
parameter WRIT0 = 5'h07;
parameter WRIT1 = 5'h08;
parameter WRIT2 = 5'h09;
parameter WRIT3 = 5'h0A;
parameter WRIT4 = 5'h0B;
parameter WRIT5 = 5'h0C;
parameter WRIT6 = 5'h0D;
parameter WRIT7 = 5'h0E;
parameter BUFF0 = 5'h0F;
parameter BUFF1 = 5'h10;
parameter BUFF2 = 5'h11;
parameter BUFF3 = 5'h12;
parameter BUFF4 = 5'h13;
parameter BUFF5 = 5'h14;
parameter BUFF6 = 5'h15;
parameter BUFF7 = 5'h16; reg [9:0]hcount = 10'h001;
reg [9:0]vcount = 10'h001;
reg [9:0]nextpixel = 10'h000;
reg [9:0]nextpixel2 = 10'h000;
reg [8:0]currline = 9'h000;
reg [9:0]next256pixel = 9'h000; wire [8:0]nxt256pix;
wire [7:0]cur256line;
wire [7:0]nxt256line;
wire [7:0]colorout; reg [8:0]currsprite = 9'h000;
reg [7:0]basecolor = 8'h00; reg [7:0]bgpal0 = 8'b00000000;
reg [7:0]bgpal1 = 8'b00111000;
reg [7:0]bgpal2 = 8'b00100000;
reg [7:0]bgpal3 = 8'b00011000;
reg [7:0]bgpal4 = 8'b00000000;
reg [7:0]bgpal5 = 8'b00111111;
reg [7:0]bgpal6 = 8'b00100100;
reg [7:0]bgpal7 = 8'b00011011;
reg [7:0]bgpal8 = 8'b00000000;
reg [7:0]bgpal9 = 8'b00011111;
reg [7:0]bgpal10 = 8'b00010100;
reg [7:0]bgpal11 = 8'b00001010;
reg [7:0]bgpal12 = 8'b00000000;
reg [7:0]bgpal13 = 8'b00000111;
reg [7:0]bgpal14 = 8'b00000100;
reg [7:0]bgpal15 = 8'b00000011; reg [7:0]sppal0 = 8'b00000000;
reg [7:0]sppal1 = 8'b00100110;
reg [7:0]sppal2 = 8'b00111111;
reg [7:0]sppal3 = 8'b00000010;
reg [7:0]sppal4 = 8'b00000000;
reg [7:0]sppal5 = 8'b10111111;
reg [7:0]sppal6 = 8'b10100100;
reg [7:0]sppal7 = 8'b10011011;
reg [7:0]sppal8 = 8'b00000000;
reg [7:0]sppal9 = 8'b10011111;
reg [7:0]sppal10 = 8'b10010100;
reg [7:0]sppal11 = 8'b10001010;
reg [7:0]sppal12 = 8'b00000000;
reg [7:0]sppal13 = 8'b10000111;
reg [7:0]sppal14 = 8'b10000100;
reg [7:0]sppal15 = 8'b10000011; always @(posedge clk) begin
if(id == 16'hA600 && write) bgpal0 <= data;
if(id == 16'hA601 && write) bgpal1 <= data;
if(id == 16'hA602 && write) bgpal2 <= data;
if(id == 16'hA603 && write) bgpal3 <= data;
if(id == 16'hA604 && write) bgpal4 <= data;
if(id == 16'hA605 && write) bgpal5 <= data;
if(id == 16'hA606 && write) bgpal6 <= data;
if(id == 16'hA607 && write) bgpal7 <= data;
if(id == 16'hA608 && write) bgpal8 <= data;
if(id == 16'hA609 && write) bgpal9 <= data;
if(id == 16'hA60A && write) bgpal10 <= data;
if(id == 16'hA60B && write) bgpal11 <= data;
if(id == 16'hA60C && write) bgpal12 <= data;
if(id == 16'hA60D && write) bgpal13 <= data;
if(id == 16'hA60E && write) bgpal14 <= data;
if(id == 16'hA60F && write) bgpal15 <= data; if(id == 16'hA610 && write) sppal0 <= data;
if(id == 16'hA611 && write) sppal1 <= data;
if(id == 16'hA612 && write) sppal2 <= data;
if(id == 16'hA613 && write) sppal3 <= data;
if(id == 16'hA614 && write) sppal4 <= data;
if(id == 16'hA615 && write) sppal5 <= data;
if(id == 16'hA616 && write) sppal6 <= data;
if(id == 16'hA617 && write) sppal7 <= data;
if(id == 16'hA618 && write) sppal8 <= data;
if(id == 16'hA619 && write) sppal9 <= data;
if(id == 16'hA61A && write) sppal10 <= data;
if(id == 16'hA61B && write) sppal11 <= data;
if(id == 16'hA61C && write) sppal12 <= data;
if(id == 16'hA61D && write) sppal13 <= data;
if(id == 16'hA61E && write) sppal14 <= data;
if(id == 16'hA61F && write) sppal15 <= data; if(id == 16'hA700 && write) basecolor <= data;
end //Line buffer wires and regs.
reg lbwe = 1'b0;
wire [8:0]lbaddra;
wire [7:0]lbdin;
wire lbrstb;
wire [8:0]lbaddrb;
wire [7:0]lbdout;
wire [7:0]lbcheck;
RAMB16_S9_S9 #(
//Test pattern.
.INIT_00(256'h00_01_02_03_04_05_06_07_08_09_0A_0B_0C_0D_0E_0F_10_11_12_13_14_15_16_17_18_19_1A_1B_1C_1D_1E_1F),
.INIT_01(256'h20_21_22_23_24_25_26_27_28_29_2A_2B_2C_2D_2E_2F_30_31_32_33_34_35_36_37_38_39_3A_3B_3C_3D_3E_3F),
.INIT_02(256'h40_41_42_43_44_45_46_47_48_49_4A_4B_4C_4D_4E_4F_50_51_52_53_54_55_56_57_58_59_5A_5B_5C_5D_5E_5F),
.INIT_03(256'h60_61_62_63_64_65_66_67_68_69_6A_6B_6C_6D_6E_6F_70_71_72_73_74_75_76_77_78_79_7A_7B_7C_7D_7E_7F),
.INIT_04(256'h80_81_82_83_84_85_86_87_88_89_8A_8B_8C_8D_8E_8F_90_91_92_93_94_95_96_97_98_99_9A_9B_9C_9D_9E_9F),
.INIT_05(256'hA0_A1_A2_A3_A4_A5_A6_A7_A8_A9_AA_AB_AC_AD_AE_AF_B0_B1_B2_B3_B4_B5_B6_B7_B8_B9_BA_BB_BC_BD_BE_BF),
.INIT_06(256'hC0_C1_C2_C3_C4_C5_C6_C7_C8_C9_CA_CB_CC_CD_CE_CF_D0_D1_D2_D3_D4_D5_D6_D7_D8_D9_DA_DB_DC_DD_DE_DF),
.INIT_07(256'hE0_E1_E2_E3_E4_E5_E6_E7_E8_E9_EA_EB_EC_ED_EE_EF_F0_F1_F2_F3_F4_F5_F6_F7_F8_F9_FA_FB_FC_FD_FE_FF),
.INIT_08(256'h0F_0E_0D_0C_0B_0A_09_08_07_06_05_04_03_02_01_00_1F_1E_1D_1C_1B_1A_19_18_17_16_15_14_13_12_11_10),
.INIT_09(256'h2F_2E_2D_2C_2B_2A_29_28_27_26_25_24_23_22_21_20_3F_3E_3D_3C_3B_3A_39_38_37_36_35_34_33_32_31_30),
.INIT_0A(256'h4F_4E_4D_4C_4B_4A_49_48_47_46_45_44_43_42_41_40_5F_5E_5D_5C_5B_5A_59_58_57_56_55_54_53_52_51_50),
.INIT_0B(256'h6F_6E_6D_6C_6B_6A_69_68_67_66_65_64_63_62_61_60_7F_7E_7D_7C_7B_7A_79_78_77_76_75_74_73_72_71_70),
.INIT_0C(256'h8F_8E_8D_8C_8B_8A_89_88_87_86_85_84_83_82_81_80_9F_9E_9D_9C_9B_9A_99_98_97_96_95_94_93_92_91_90),
.INIT_0D(256'hAF_AE_AD_AC_AB_AA_A9_A8_A7_A6_A5_A4_A3_A2_A1_A0_BF_BE_BD_BC_BB_BA_B9_B8_B7_B6_B5_B4_B3_B2_B1_B0),
.INIT_0E(256'hCF_CE_CD_CC_CB_CA_C9_C8_C7_C6_C5_C4_C3_C2_C1_C0_DF_DE_DD_DC_DB_DA_D9_D8_D7_D6_D5_D4_D3_D2_D1_D0),
.INIT_0F(256'hEF_EE_ED_EC_EB_EA_E9_E8_E7_E6_E5_E4_E3_E2_E1_E0_FF_FE_FD_FC_FB_FA_F9_F8_F7_F6_F5_F4_F3_F2_F1_F0))
LineBufferRAM (
.DOA(lbcheck),
.DOB(lbdout), // Port B 8-bit Data Output
.ADDRA({2'b00, lbaddra}), // Port A 11-bit Address Input
.ADDRB({2'b00, lbaddrb}), // Port B 11-bit Address Input
.CLKA(clk), // Port A Clock
.CLKB(clk25MHz), // Port B Clock
.DIA(lbdin), // Port A 8-bit Data Input
.DIPA(1'b0), // 1-bit Parity
.ENA(1'b1), // Port A RAM Enable Input
.ENB(1'b1), // Port B RAM Enable Input
.SSRA(1'b0), // Port A Synchronous Set/Reset Input
.SSRB(lbrstb), // Port B Synchronous Set/Reset Input
.WEA(lbwe), // Port A Write Enable Input
.WEB(1'b0) // Port B Write Enable Input
); //Name table wires and regs.
wire [7:0]ntdout;
wire [9:0]ntaddra;
wire [9:0]ntaddrb;
wire [7:0]ntdin;
wire ntwe; assign ntdin = data;
assign ntaddrb = id - 16'hA000;
assign ntwe = (id >= 16'hA000 && id <= 16'hA3FF) ? write : 1'b0;
RAMB16_S9_S9 #(
.INIT_00(256'hFF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF),
.INIT_01(256'hFF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF),
.INIT_02(256'hFF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF),
.INIT_03(256'hFF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF),
.INIT_04(256'hFF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF),
.INIT_05(256'hFF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF),
.INIT_06(256'hFF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF),
.INIT_07(256'hFF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF),
.INIT_08(256'hFF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF),
.INIT_09(256'hFF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF),
.INIT_0A(256'hFF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF),
.INIT_0B(256'hFF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF),
.INIT_0C(256'hFF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF),
.INIT_0D(256'hFF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF),
.INIT_0E(256'hFF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF),
.INIT_0F(256'hFF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF),
.INIT_10(256'hFF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF),
.INIT_11(256'hFF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF),
.INIT_12(256'hFF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF),
.INIT_13(256'hFF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF),
.INIT_14(256'hFF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF),
.INIT_15(256'hFF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF),
.INIT_16(256'hFF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF),
.INIT_17(256'hFF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF),
.INIT_18(256'hFF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF),
.INIT_19(256'hFF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF),
.INIT_1A(256'hFF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF),
.INIT_1B(256'hFF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF),
.INIT_1C(256'hFF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF),
.INIT_1D(256'hFF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF),
.INIT_1E(256'hFF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF),
.INIT_1F(256'hFF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF_FF))
NameTableRAM (
.DOA(ntdout), // Port B 8-bit Data Output
.ADDRA({1'b0, ntaddra}), // Port A 11-bit Address Input
.ADDRB({1'b0, ntaddrb}), // Port B 11-bit Address Input
.CLKA(clk), // Port A Clock
.CLKB(clk), // Port B Clock
.DIB(ntdin), // Port A 8-bit Data Input
.DIPB(1'b0), // 1-bit Parity
.ENA(1'b1), // Port A RAM Enable Input
.ENB(1'b1), // Port B RAM Enable Input
.SSRA(1'b0), // Port A Synchronous Set/Reset Input
.SSRB(1'b0), // Port B Synchronous Set/Reset Input
.WEA(1'b0), // Port A Write Enable Input
.WEB(ntwe) // Port B Write Enable Input
); //Background pattern table A wires.
wire [7:0]bgptadout;
wire [10:0]bgptaaddra;
wire [10:0]bgptaaddrb;
wire [7:0]bgptadin;
wire bgptawe; assign bgptadin = data;
assign bgptaaddrb = id - 16'h8000;
assign bgptawe = (id >= 16'h8000 && id <= 16'h87FF) ? write : 1'b0;
RAMB16_S9_S9 #(
.INIT_00(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_01(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_02(256'h00_FC_C6_C6_FC_C6_C6_FC_00_C6_C6_FE_C6_C6_6C_38_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_03(256'h00_C0_C0_C0_FC_C0_C0_FE_00_FE_C0_C0_FC_C0_C0_FE_00_F8_CC_C6_C6_C6_CC_F8_00_3C_66_C0_C0_C0_66_3C),
.INIT_04(256'h00_7C_C6_C6_06_06_06_1E_00_7E_18_18_18_18_18_7E_00_C6_C6_C6_FE_C6_C6_C6_00_3E_66_C6_CE_C0_60_3E),
.INIT_05(256'h00_C6_CE_DE_FE_F6_E6_C6_00_C6_C6_D6_FE_FE_EE_C6_00_7E_60_60_60_60_60_60_00_CE_DC_F8_F0_D8_CC_C6),
.INIT_06(256'h00_CE_DC_F8_CE_C6_C6_FC_00_7A_CC_DE_C6_C6_C6_7C_00_C0_C0_FC_C6_C6_C6_FC_00_7C_C6_C6_D6_C6_C6_7C),
.INIT_07(256'h00_10_38_7C_EE_C6_C6_C6_00_7C_C6_C6_C6_C6_C6_C6_00_18_18_18_18_18_18_7E_00_7C_C6_06_7C_C0_CC_78),
.INIT_08(256'h00_FE_E0_70_38_1C_0E_FE_00_18_18_18_3C_66_66_66_00_C6_EE_7C_38_7C_EE_C6_00_C6_EE_FE_FE_D6_C6_C6),
.INIT_09(256'h00_1C_24_24_1C_04_04_00_00_38_40_40_40_38_00_00_00_38_24_24_38_20_20_00_00_34_48_48_38_08_30_00),
.INIT_0A(256'h00_24_24_24_38_20_20_00_00_08_14_0C_3A_48_30_00_00_10_10_10_3C_10_18_00_00_3C_40_78_44_38_00_00),
.INIT_0B(256'h00_16_08_14_14_14_08_00_00_4C_70_50_48_40_40_00_00_30_48_08_08_00_08_00_00_10_10_10_00_10_00_00),
.INIT_0C(256'h00_20_20_38_24_24_38_00_00_30_48_48_48_30_00_00_00_48_48_48_48_30_00_00_00_54_54_54_54_28_00_00),
.INIT_0D(256'h00_18_20_20_20_70_20_00_00_78_04_38_40_38_00_00_00_10_10_10_1C_60_00_00_00_04_0A_38_48_48_30_00),
.INIT_0E(256'h00_44_28_10_28_44_00_00_00_28_54_54_54_44_00_00_00_10_38_28_44_44_00_00_00_34_48_48_48_48_00_00),
.INIT_0F(256'h00_00_00_00_7C_00_00_00_00_08_00_08_02_22_1C_00_00_7C_20_10_08_7C_00_00_00_18_24_04_1C_24_24_00),
.INIT_10(256'h04_04_FC_00_00_00_00_01_20_20_3F_00_00_00_00_80_80_00_00_00_00_00_00_00_01_00_00_00_00_00_00_00),
.INIT_11(256'h82_82_82_82_82_82_82_82_FF_00_00_00_00_00_FF_00_FE_02_02_02_02_02_FE_00_7F_40_40_40_40_40_7F_00),
.INIT_12(256'h00_00_FF_80_00_00_00_80_00_00_FF_01_00_00_00_01_82_82_82_82_82_02_04_08_41_41_41_41_41_40_20_10),
.INIT_13(256'h10_60_80_00_00_00_00_00_08_06_01_00_00_00_00_00_02_02_04_08_10_60_80_00_40_40_20_10_08_06_01_00),
.INIT_14(256'h01_00_00_00_00_FC_04_04_80_00_00_00_00_3F_20_20_00_00_00_00_00_00_00_80_00_00_00_00_00_00_00_01),
.INIT_15(256'h00_FF_00_00_00_00_00_FF_41_41_41_41_41_41_41_41_00_FE_82_82_82_82_82_82_00_7F_40_40_40_40_40_7F),
.INIT_16(256'h80_00_00_00_80_FF_00_00_01_00_00_00_01_FF_00_00_08_04_02_82_82_82_82_82_10_20_40_41_41_41_41_41),
.INIT_17(256'h00_00_00_00_00_80_60_10_00_00_00_00_00_01_06_08_00_80_60_10_08_04_02_02_00_01_06_08_10_20_40_40),
.INIT_18(256'h00_00_00_00_00_7F_40_40_40_40_7F_00_00_00_00_00_00_00_FF_00_00_00_00_00_00_00_00_00_00_FF_00_00),
.INIT_19(256'h20_20_20_20_10_08_04_02_80_80_00_00_00_00_00_00_00_00_01_01_02_0C_F0_00_00_80_40_20_10_0C_03_00),
.INIT_1A(256'h00_00_00_00_00_3F_20_20_04_04_FC_80_80_80_80_80_00_00_C0_40_40_40_40_C0_00_00_1F_10_08_04_02_01),
.INIT_1B(256'h1C_22_41_41_41_22_1C_00_00_80_80_80_80_80_80_80_80_80_80_80_80_FC_04_04_40_40_40_40_40_C0_00_00),
.INIT_1C(256'h41_40_40_40_40_40_7F_00_00_FE_02_02_02_02_02_FE_00_7F_40_40_40_40_40_40_01_00_00_00_00_00_00_00),
.INIT_1D(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_61_41_43_00_61_41_43_00_40_40_41_41_41_41_41_41),
.INIT_1E(256'h00_00_00_00_00_00_00_00_FF_FF_AA_55_AA_55_AA_55_AA_55_AA_55_AA_55_AA_55_AA_55_AA_55_AA_55_FF_FF),
.INIT_1F(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_61_41_43_00_61_41_43_00),
.INIT_20(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_21(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_22(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_23(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_24(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_25(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_26(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_27(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_28(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_29(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_2A(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_2B(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_2C(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_2D(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_2E(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_2F(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_30(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_31(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_32(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_33(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_34(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_35(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_36(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_37(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_38(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_39(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_3A(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_3B(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_3C(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_3D(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_3E(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_3F(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00))
BGPatternTableARAM (
.DOA(bgptadout), // Port B 8-bit Data Output
.ADDRA(bgptaaddra), // Port A 11-bit Address Input
.ADDRB(bgptaaddrb), // Port B 11-bit Address Input
.CLKA(clk), // Port A Clock
.CLKB(clk), // Port B Clock
.DIB(bgptadin), // Port A 8-bit Data Input
.DIPB(1'b0), // 1-bit Parity
.ENA(1'b1), // Port A RAM Enable Input
.ENB(1'b1), // Port B RAM Enable Input
.SSRA(1'b0), // Port A Synchronous Set/Reset Input
.SSRB(1'b0), // Port B Synchronous Set/Reset Input
.WEA(1'b0), // Port A Write Enable Input
.WEB(bgptawe) // Port B Write Enable Input
); //Background pattern table B wires.
wire [7:0]bgptbdout;
wire [10:0]bgptbaddra;
wire [10:0]bgptbaddrb;
wire [7:0]bgptbdin;
wire bgptbwe; assign bgptbdin = data;
assign bgptbaddrb = id - 16'h8800;
assign bgptbwe = (id >= 16'h8800 && id <= 16'h8FFF) ? write : 1'b0;
RAMB16_S9_S9 #(
.INIT_00(256'h00_7C_C6_06_3C_18_0C_7E_00_FE_E0_78_3C_0E_C6_7C_00_7E_18_18_18_18_38_18_00_7C_C6_C6_C6_C6_C6_7C),
.INIT_01(256'h00_30_30_30_18_0C_C6_FE_00_7C_C6_C6_FC_C0_60_3C_00_7C_C6_06_06_FC_C0_FC_00_0C_0C_FE_CC_6C_3C_1C),
.INIT_02(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_78_0C_06_7E_C6_C6_7C_00_7C_C6_C6_7C_C6_C6_7C),
.INIT_03(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_04(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_05(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_06(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_07(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_08(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_09(256'h00_1C_24_24_1C_04_04_00_00_38_40_40_40_38_00_00_00_38_24_24_38_20_20_00_00_34_48_48_38_08_30_00),
.INIT_0A(256'h00_24_24_24_38_20_20_00_00_08_14_0C_3A_48_30_00_00_10_10_10_3C_10_18_00_00_3C_40_78_44_38_00_00),
.INIT_0B(256'h00_16_08_14_14_14_08_00_00_4C_70_50_48_40_40_00_00_30_48_08_08_00_08_00_00_10_10_10_00_10_00_00),
.INIT_0C(256'h00_20_20_38_24_24_38_00_00_30_48_48_48_30_00_00_00_48_48_48_48_30_00_00_00_54_54_54_54_28_00_00),
.INIT_0D(256'h00_18_20_20_20_70_20_00_00_78_04_38_40_38_00_00_00_10_10_10_1C_60_00_00_00_04_0A_38_48_48_30_00),
.INIT_0E(256'h00_44_28_10_28_44_00_00_00_28_54_54_54_44_00_00_00_10_38_28_44_44_00_00_00_34_48_48_48_48_00_00),
.INIT_0F(256'h00_00_00_00_7C_00_00_00_00_08_00_08_02_22_1C_00_00_7C_20_10_08_7C_00_00_00_18_24_04_1C_24_24_00),
.INIT_10(256'hF8_F8_00_00_00_00_00_01_3F_3F_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_11(256'hFC_FC_FC_FC_FC_FC_FC_FC_FF_FF_FF_FF_FF_FF_00_00_FC_FC_FC_FC_FC_FC_00_00_7F_7F_7F_7F_7F_7F_00_00),
.INIT_12(256'hFF_FF_00_00_00_00_00_00_FF_FF_00_00_00_00_00_01_FC_FC_FC_FC_FC_FC_F8_F0_7E_7E_7E_7E_7E_7F_3F_1F),
.INIT_13(256'hE0_80_00_00_00_00_00_00_0F_07_00_00_00_00_00_00_FC_FC_F8_F0_E0_80_00_00_7F_7F_3F_1F_0F_07_00_00),
.INIT_14(256'h00_00_00_00_00_F8_F8_F8_00_00_00_00_00_3F_3F_3F_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_01),
.INIT_15(256'h00_FF_FF_FF_FF_FF_FF_00_7E_7E_7E_7E_7E_7E_7E_7E_00_FC_FC_FC_FC_FC_FC_FC_00_7F_7F_7F_7F_7F_7F_00),
.INIT_16(256'h00_00_00_00_00_FF_FF_FF_00_00_00_00_01_FF_FF_FF_F0_F8_FC_FC_FC_FC_FC_FC_1F_3F_7F_7E_7E_7E_7E_7E),
.INIT_17(256'h00_00_00_00_00_00_80_E0_00_00_00_00_00_01_07_0F_00_80_80_E0_F0_F8_FC_FC_00_01_07_0F_1F_3F_7F_7F),
.INIT_18(256'h00_00_00_00_00_7F_7F_7F_7F_7F_00_00_00_00_00_00_FF_FF_00_00_00_00_00_00_00_00_00_00_00_FF_FF_FF),
.INIT_19(256'h3F_3F_3F_3F_1F_0F_07_03_00_00_00_00_00_00_00_00_FF_FF_FE_FE_FC_F0_00_00_FF_FF_7F_3F_1F_0F_00_00),
.INIT_1A(256'h00_00_00_00_00_3F_3F_3F_F8_F8_00_00_00_00_00_00_FF_FF_7F_7F_7F_7F_7F_7F_FF_FF_E0_E0_F0_F8_FC_FE),
.INIT_1B(256'h1C_3C_7E_7E_7E_3C_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_F8_F8_F8_7F_7F_7F_7F_7F_FF_FF_FF),
.INIT_1C(256'h7F_7F_7F_7F_7F_7F_00_00_00_FC_FC_FC_FC_FC_FC_00_00_7F_7F_7F_7F_7F_7F_7F_01_00_00_00_00_00_00_00),
.INIT_1D(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_7F_7F_7E_7E_7E_7E_7E_7E),
.INIT_1E(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_1F(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_7E_7E_7C_00_7E_7E_7C_00),
.INIT_20(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_21(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_22(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_23(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_24(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_25(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_26(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_27(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_28(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_29(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_2A(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_2B(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_2C(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_2D(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_2E(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_2F(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_30(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_31(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_32(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_33(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_34(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_35(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_36(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_37(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_38(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_39(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_3A(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_3B(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_3C(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_3D(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_3E(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_3F(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00))
BGPatternTableBRAM (
.DOA(bgptbdout), // Port B 8-bit Data Output
.ADDRA(bgptbaddra), // Port A 11-bit Address Input
.ADDRB(bgptbaddrb), // Port B 11-bit Address Input
.CLKA(clk), // Port A Clock
.CLKB(clk), // Port B Clock
.DIB(bgptbdin), // Port A 8-bit Data Input
.DIPB(1'b0), // 1-bit Parity
.ENA(1'b1), // Port A RAM Enable Input
.ENB(1'b1), // Port B RAM Enable Input
.SSRA(1'b0), // Port A Synchronous Set/Reset Input
.SSRB(1'b0), // Port B Synchronous Set/Reset Input
.WEA(1'b0), // Port A Write Enable Input
.WEB(bgptbwe) // Port B Write Enable Input
); //Background attribute table wires.
wire [7:0]bgatdout;
wire [7:0]bgataddra;
wire [7:0]bgataddrb;
wire [7:0]bgatdin;
wire bgatwe; assign bgatdin = data;
assign bgataddrb = id - 16'hA500;
assign bgatwe = (id >= 16'hA500 && id <= 16'hA5FF) ? write : 1'b0;
RAMB16_S9_S9 #(
.INIT_00(256'hAA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA),
.INIT_01(256'hAA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA),
.INIT_02(256'hAA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA),
.INIT_03(256'hFF_FF_FF_FF_FF_FF_FF_FF_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA),
.INIT_04(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_05(256'h56_55_55_55_55_55_55_55_55_55_55_55_55_55_55_55_55_55_55_55_55_55_55_55_56_55_55_55_55_55_55_55),
.INIT_06(256'hAA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_55_55_55_55_55_55_55_55_55_55_55_55_55_55_55_55),
.INIT_07(256'hAA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA_AA))
BGAttributeTableRAM (
.DOA(bgatdout), // Port B 8-bit Data Output
.ADDRA({3'h0, bgataddra}), // Port A 11-bit Address Input
.ADDRB({3'h0, bgataddrb}), // Port B 11-bit Address Input
.CLKA(clk), // Port A Clock
.CLKB(clk), // Port B Clock
.DIB(bgatdin), // Port A 8-bit Data Input
.DIPB(1'b0), // 1-bit Parity
.ENA(1'b1), // Port A RAM Enable Input
.ENB(1'b1), // Port B RAM Enable Input
.SSRA(1'b0), // Port A Synchronous Set/Reset Input
.SSRB(1'b0), // Port B Synchronous Set/Reset Input
.WEA(1'b0), // Port A Write Enable Input
.WEB(bgatwe) // Port B Write Enable Input
); //Sprite RAM wires.
wire spwe;
wire [9:0]spaddra;
wire [7:0]spdin;
wire [7:0]spaddrb;
wire [31:0]spdout; assign spwe = (id >= 16'hB000 && id <= 16'hB3FF) ? write : 1'b0;
assign spaddra = id - 16'hB000;
assign spdin = data;
assign spaddrb = (currsprite) ? currsprite - 1'b1 : 8'h00;
BRAM_TDP_MACRO #(
.BRAM_SIZE("36Kb"), // Target BRAM: "18Kb" or "36Kb"
.READ_WIDTH_A (8), // Valid values are 1-36 (19-36 only valid when BRAM_SIZE="36Kb")
.READ_WIDTH_B (32), // Valid values are 1-36 (19-36 only valid when BRAM_SIZE="36Kb")
.WRITE_WIDTH_A(8), // Valid values are 1-36 (19-36 only valid when BRAM_SIZE="36Kb")
.WRITE_WIDTH_B(32), // Valid values are 1-36 (19-36 only valid when BRAM_SIZE="36Kb")
.INIT_00(256'h00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF),
.INIT_01(256'h00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF),
.INIT_02(256'h00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF),
.INIT_03(256'h00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF),
.INIT_04(256'h00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF),
.INIT_05(256'h00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF),
.INIT_06(256'h00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF),
.INIT_07(256'h00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF),
.INIT_08(256'h00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF),
.INIT_09(256'h00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF),
.INIT_0A(256'h00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF),
.INIT_0B(256'h00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF),
.INIT_0C(256'h00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF),
.INIT_0D(256'h00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF),
.INIT_0E(256'h00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF),
.INIT_0F(256'h00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF),
.INIT_10(256'h00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF),
.INIT_11(256'h00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF),
.INIT_12(256'h00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF),
.INIT_13(256'h00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF),
.INIT_14(256'h00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF),
.INIT_15(256'h00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF),
.INIT_16(256'h00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF),
.INIT_17(256'h00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF),
.INIT_18(256'h00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF),
.INIT_19(256'h00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF),
.INIT_1A(256'h00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF),
.INIT_1B(256'h00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF),
.INIT_1C(256'h00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF),
.INIT_1D(256'h00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF),
.INIT_1E(256'h00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF),
.INIT_1F(256'h00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF__00_00_00_FF)
) SpriteRAM (
.DOB(spdout), // Port B 32-bit Data Output
.ADDRA({2'b00, spaddra}), // Port A 12-bit Address Input
.ADDRB({2'b00, spaddrb}), // Port B 10-bit Address Input
.CLKA(clk), // Port A Clock
.CLKB(clk), // Port B Clock
.DIA(spdin), // Port A 8-bit Data Input
.DIB(32'h00000000), // Port B 32-bit Data Input
.ENA(1'b1), // Port A RAM Enable Input
.ENB(1'b1), // Port B RAM Enable Input
.RSTA(1'b0), // 1-bit input port-A reset
.RSTB(1'b0), // 1-bit input port-B reset
.WEA(spwe), // Port A Write Enable Input
.WEB(1'b0) // Port B Write Enable Input
); wire awe;
wire [10:0]aaddra;
wire [7:0]adin;
wire [10:0]aaddrb;
wire [7:0]adout; assign awe = (id >= 16'h9000 && id <= 16'h97FF) ? write : 1'b0;
assign aaddra = id - 16'h9000;
assign adin = data;
RAMB16_S9_S9 #(
.INIT_00(256'hD0_70_F8_F8_F8_F0_E0_80_3E_0F_06_25_16_1F_0F_03_E0_30_F0_F0_E0_C0_00_00_1D_0D_4B_2D_3F_1F_07_00),
.INIT_01(256'h30_70_7C_FE_ED_ED_F6_F6_E0_E0_F0_F0_F0_E0_C0_00_7D_1F_0D_4B_2D_3F_1F_07_00_3C_7E_7E_7E_7E_3C_00),
.INIT_02(256'h04_64_00_12_00_09_27_00_6E_38_08_48_A0_D0_E0_80_76_1C_10_12_05_0B_07_01_00_00_00_60_E0_C0_80_00),
.INIT_03(256'hEC_CC_9C_98_B8_F0_E0_C0_5C_B0_60_A4_68_F8_F0_C0_0F_0F_1F_1F_1F_0F_07_01_04_28_00_48_20_50_60_84),
.INIT_04(256'hE0_E0_F8_FE_FF_FF_FB_BE_01_03_33_1D_0E_06_0B_1D_C0_E0_F8_F8_38_F0_E0_40_13_0B_0B_1D_0D_15_3A_7B),
.INIT_05(256'h00_00_00_00_20_00_00_20_E0_E0_F0_F8_FC_F6_EE_F8_33_7B_FD_FE_EF_67_11_3F_BD_18_18_18_00_3C_18_18),
.INIT_06(256'h01_00_C0_11_70_2C_D8_0A_EF_93_63_F2_FE_FC_BF_5F_09_91_C6_4F_7F_3F_FD_FA_68_FC_AE_F7_DA_77_3F_0C),
.INIT_07(256'hFF_FF_FE_FE_FE_F6_F6_EE_9A_3E_FC_E0_F8_FC_FE_BE_07_07_0F_0E_1E_1D_1D_1E_04_00_20_10_6E_E8_93_50),
.INIT_08(256'h3C_70_60_E0_E0_F0_F0_F0_1D_03_1F_1E_38_77_7F_3F_F8_E0_E0_E0_F0_F0_F0_E0_01_00_01_01_00_00_01_01),
.INIT_09(256'h00_18_B8_B0_B0_C0_C0_00_1C_3F_3F_77_E3_F1_F1_F0_1C_0E_0E_07_07_03_01_01_00_00_00_00_18_BD_FF_99),
.INIT_0A(256'h70_98_C0_08_58_62_38_20_18_38_30_30_7C_66_F6_FF_18_1C_0C_0C_02_00_01_01_7F_FF_FF_3F_FF_FF_FF_40),
.INIT_0B(256'hFF_FF_FF_FF_FF_FF_FF_FF_F0_38_38_70_F0_E0_C0_80_07_07_07_07_07_0F_0F_0F_0E_05_4B_10_12_06_04_00),
.INIT_0C(256'h03_01_00_01_02_07_1F_3F_00_00_00_00_00_00_78_3C_7A_37_0F_1F_3E_3F_7B_FE_00_00_08_3C_38_3C_08_00),
.INIT_0D(256'h00_00_18_3C_3C_34_18_00_00_80_C0_C0_80_00_00_18_3E_1E_09_07_07_07_0E_1C_80_C0_C0_C0_C0_00_C0_80),
.INIT_0E(256'h00_3D_1D_0B_07_07_07_07_00_00_66_66_66_00_00_00_70_F8_F0_08_78_38_38_38_FF_FF_FF_FF_FF_FF_FF_00),
.INIT_0F(256'h81_80_A7_A3_A3_91_60_1F_74_A0_A4_80_20_40_00_00_01_07_23_AA_DD_6A_A1_48_3C_1C_83_8F_9F_3E_F8_F0),
.INIT_10(256'hCC_DE_BE_7C_F0_E0_88_FC_07_07_07_07_1F_37_37_1F_E0_80_C0_F0_60_A8_5C_DE_07_0F_1F_1F_1C_0F_07_02),
.INIT_11(256'h03_05_0D_0E_3E_36_7A_7D_00_00_00_00_02_00_00_02_80_80_38_1C_1C_38_D0_B8_07_07_18_7C_FC_F8_C7_7D),
.INIT_12(256'h00_00_00_00_40_00_00_40_C0_E0_D0_B0_FC_7C_BE_FE_07_07_0F_1F_3E_3F_1F_0F_E0_F0_F8_FC_DE_EE_FC_F0),
.INIT_13(256'hFF_93_9F_95_93_93_83_81_14_2D_16_3A_1D_4A_5C_A8_0F_17_1A_1C_1C_38_38_38_3C_66_C3_99_99_C3_66_3C),
.INIT_14(256'h78_F0_E0_E0_C0_C0_00_00_5F_74_77_3F_3F_1F_07_00_FC_F8_F8_F0_C0_00_00_00_33_1B_1F_0F_03_00_00_00),
.INIT_15(256'h14_3E_7C_5E_7C_7E_3F_14_A0_C0_E0_E0_40_00_00_00_7B_BD_DE_EF_FF_FF_FE_F8_FB_FC_7F_7F_1F_07_03_00),
.INIT_16(256'h00_00_00_00_00_00_00_00_3F_1F_0F_1F_3F_7B_71_20_00_17_14_54_57_B4_17_00_00_49_49_49_49_49_E9_00),
.INIT_17(256'hE0_40_60_F0_F0_60_40_E0_01_00_11_77_77_11_00_01_00_00_00_00_00_00_00_00_3C_66_C3_81_81_C3_66_3C),
.INIT_18(256'hFE_DE_7E_FE_FC_7C_FC_78_3D_3F_1F_78_7C_7E_3F_1F_C0_70_F8_F8_FC_FC_FC_FC_03_0F_1F_1F_3F_3F_3F_37),
.INIT_19(256'h00_00_00_00_00_00_40_20_00_00_00_00_20_60_60_60_00_C0_D8_F8_BC_BE_AF_B7_00_00_11_3B_7F_7F_F7_F7),
.INIT_1A(256'hC0_80_80_00_00_00_00_00_00_08_18_30_F0_60_C0_80_18_00_00_48_00_00_00_00_1C_3E_7F_7F_7F_7F_3E_1C),
.INIT_1B(256'hFF_01_7D_7D_7D_7D_7D_01_FF_01_41_41_41_41_7D_01_00_00_00_00_00_00_00_00_F0_F0_F0_E0_E0_E0_C0_C0),
.INIT_1C(256'hD0_B8_78_F0_F8_DC_BE_7E_07_03_00_01_01_07_1F_3F_3C_7E_F3_C1_C1_F3_7E_3C_3C_7E_F3_C1_C1_F3_7E_3C),
.INIT_1D(256'h07_07_0F_0F_0F_1F_1F_1F_FE_FE_C0_FC_FC_C0_FE_FE_20_30_98_36_4A_35_48_02_0A_09_05_01_00_00_00_00),
.INIT_1E(256'h05_05_05_06_07_07_07_06_A0_F0_F0_F0_F0_E0_E0_E0_3B_7B_7B_79_3D_3F_1F_07_80_C0_C0_A0_60_60_60_C0),
.INIT_1F(256'hC6_CE_DE_FE_FE_F6_E6_C6_FC_FC_FC_F8_F8_F0_C0_00_3F_3F_3F_1F_1F_0F_03_00_FC_C0_FE_E0_7F_80_F0_00),
.INIT_20(256'h98_68_F0_E0_C0_00_01_02_1F_1F_0E_05_03_00_80_40_C0_C0_E0_F0_F8_3C_06_03_07_2F_07_13_00_00_00_00),
.INIT_21(256'h10_30_E0_C0_00_00_00_00_0C_0F_07_03_10_08_00_00_17_37_37_17_17_F5_F6_F4_E8_E8_E8_E8_E8_AF_61_2F),
.INIT_22(256'h00_FC_7E_1E_0C_01_05_05_3C_7E_E7_DB_DB_E7_7E_3C_38_7C_FE_FE_FE_FE_7C_38_BB_7E_26_A2_7A_1A_07_07),
.INIT_23(256'h7E_FF_FF_FF_FF_FF_FF_7E_00_00_C0_30_98_E8_FC_FC_00_00_03_0E_1F_1F_3F_3F_00_70_F0_70_A0_40_F8_80),
.INIT_24(256'h02_01_00_C0_E0_F0_68_98_40_80_00_03_05_0E_1F_1F_00_00_00_00_C0_E0_F0_E0_C0_70_3C_1F_0F_07_03_01),
.INIT_25(256'hF8_FE_00_00_C0_E0_30_10_1F_7F_00_00_03_07_0F_0C_00_24_24_24_00_F4_F6_17_00_24_24_24_00_2F_6F_E8),
.INIT_26(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_74_48_61_F5_B6_60_F8_84_1A_7C_BB_9F_4F_02_79_15),
.INIT_27(256'hE0_58_AC_58_F0_20_00_00_07_1D_2A_55_6B_D4_A8_D9_00_00_00_00_00_00_00_00_A8_D8_AC_58_70_20_00_00),
.INIT_28(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_C0_C0_00_00_00),
.INIT_29(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_2A(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_2B(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_2C(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_2D(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_2E(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_2F(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_30(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_31(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_32(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_33(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_34(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_35(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_36(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_37(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_38(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_39(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_3A(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_3B(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_3C(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_3D(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_3E(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_3F(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00))
aRAM (
.DOB(adout), // Port B 8-bit Data Output
.ADDRA(aaddra), // Port A 11-bit Address Input
.ADDRB(aaddrb), // Port B 11-bit Address Input
.CLKA(clk), // Port A Clock
.CLKB(clk), // Port B Clock
.DIA(adin), // Port A 8-bit Data Input
.DIPA(1'b0), // 1-bit Parity
.ENA(1'b1), // Port A RAM Enable Input
.ENB(1'b1), // Port B RAM Enable Input
.SSRA(1'b0), // Port A Synchronous Set/Reset Input
.SSRB(1'b0), // Port B Synchronous Set/Reset Input
.WEA(awe), // Port A Write Enable Input
.WEB(1'b0) // Port B Write Enable Input
); wire bwe;
wire [10:0]baddra;
wire [7:0]bdin;
wire [10:0]baddrb;
wire [7:0]bdout; assign bwe = (id >= 16'h9800 && id <= 16'h9FFF) ? write : 1'b0;
assign baddra = id - 16'h9800;
assign bdin = data;
RAMB16_S9_S9 #(
.INIT_00(256'hF8_70_00_00_10_20_00_00_00_20_31_32_19_00_00_00_C0_00_00_20_40_00_00_00_41_62_64_32_00_00_00_00),
.INIT_01(256'h00_70_58_D8_EA_E2_F1_F0_E0_00_00_00_20_40_00_00_01_40_62_64_32_00_00_00_3C_42_A1_95_8D_9D_42_3C),
.INIT_02(256'h00_60_09_8E_0A_04_01_00_0E_80_D0_F0_70_20_00_00_70_01_0B_0F_0E_04_01_00_00_00_00_00_00_00_00_00),
.INIT_03(256'h10_30_60_60_40_00_00_00_C0_84_8C_4C_98_00_00_00_0F_07_00_00_08_04_00_00_04_00_50_F0_30_20_00_04),
.INIT_04(256'hE0_E0_E0_C2_C3_C7_FC_FE_00_03_37_73_F1_F1_94_61_20_30_30_60_F8_F0_E0_E0_3A_54_54_32_03_0B_07_03),
.INIT_05(256'h00_00_00_00_7C_FC_F8_78_E0_E0_F0_F8_FC_F0_EC_F8_03_43_6D_7E_2F_07_0B_07_91_00_00_18_00_24_00_18),
.INIT_06(256'h01_08_40_00_60_64_D8_08_E7_F3_90_0A_86_4E_5F_3F_3D_FB_09_50_64_72_FA_FC_08_10_24_15_1A_06_00_00),
.INIT_07(256'h00_00_00_00_00_08_08_10_80_F0_20_00_63_CF_FF_EF_07_07_0F_0F_1F_1D_1F_1F_00_80_08_00_06_48_03_10),
.INIT_08(256'h2C_70_60_E0_E0_F0_F0_F0_02_0C_00_0C_38_77_6F_1F_40_E0_E0_E0_F0_F0_F0_E0_00_00_00_00_00_00_01_01),
.INIT_09(256'h00_00_00_40_40_20_00_00_0C_36_36_77_E0_F0_F0_F0_00_0E_0E_07_07_03_01_01_00_00_00_00_10_91_F7_B5),
.INIT_0A(256'h00_00_08_10_00_00_08_20_08_30_30_30_70_60_E0_E1_10_0C_0C_0C_0E_12_29_5F_00_00_00_26_26_00_00_3F),
.INIT_0B(256'h00_00_00_00_00_00_00_00_70_30_20_70_F0_E0_C0_80_06_07_07_07_07_0F_0F_0F_00_00_10_06_00_00_00_00),
.INIT_0C(256'h00_00_00_00_01_00_0E_0E_00_00_00_00_00_00_00_00_04_08_10_06_0E_3C_7C_F0_00_00_10_28_04_28_10_00),
.INIT_0D(256'h00_00_00_24_14_18_00_00_00_00_00_00_00_00_00_00_00_01_06_00_03_07_0E_0C_00_00_00_00_00_C0_00_00),
.INIT_0E(256'h00_02_02_04_01_03_07_06_00_00_00_66_66_00_00_00_00_00_08_70_10_38_38_38_00_00_00_66_66_00_00_FF),
.INIT_0F(256'h01_00_25_21_20_11_00_00_E0_00_24_80_00_40_00_00_03_93_17_EE_50_4A_00_40_00_02_0C_00_04_3C_78_30),
.INIT_10(256'hC4_DA_BA_7C_F0_E0_D0_E0_07_07_07_07_1F_3F_3F_1F_98_04_3C_88_60_D0_E0_C0_07_0F_0F_07_1C_0F_07_07),
.INIT_11(256'h03_02_02_01_F1_E9_C5_83_00_00_00_00_07_0F_0F_07_00_C0_F8_3C_FC_F8_80_80_07_07_1F_7E_FF_FF_27_7F),
.INIT_12(256'h00_00_00_00_E0_F0_F0_E0_C0_E0_E0_C0_DC_FF_FF_F3_07_07_0F_1F_1F_1F_1F_0F_00_00_18_3C_DC_F0_FC_F0),
.INIT_13(256'h00_11_1F_17_11_11_00_00_30_25_52_38_91_68_C8_E0_00_08_04_08_1C_38_38_38_00_00_18_3C_3C_18_00_00),
.INIT_14(256'hF8_F0_E0_00_00_00_00_00_27_0F_0B_00_10_08_00_00_BC_38_F8_F0_C0_00_00_00_0F_07_03_01_03_00_00_00),
.INIT_15(256'h00_1A_04_16_14_0A_19_00_40_20_00_00_00_00_00_00_7E_FF_FF_FF_FF_FF_FE_F8_1F_9E_5F_1F_0F_07_03_00),
.INIT_16(256'h00_00_00_00_00_00_00_00_00_0E_06_0E_1A_30_20_00_00_17_14_54_57_B4_17_00_00_49_49_49_49_49_E9_00),
.INIT_17(256'hE0_40_C0_00_F0_C0_40_E0_01_00_10_44_45_10_00_01_00_00_00_00_00_00_00_00_24_42_99_3C_3C_99_42_24),
.INIT_18(256'hFE_FE_FE_FE_FC_7C_FC_F8_1F_0B_07_1B_3D_7E_7F_6F_00_90_78_F8_FC_FC_7C_FC_00_0B_1F_07_23_36_1E_0F),
.INIT_19(256'h3C_7E_C3_DF_DF_DF_7E_3C_00_00_00_00_00_00_00_80_00_00_80_C8_9C_AE_BE_FE_00_00_0D_07_03_07_07_1F),
.INIT_1A(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_80_00_00_78_78_78_78_78_30_00_00_00_00_00_00_00_20_10_00),
.INIT_1B(256'h00_FE_FE_FE_FE_FE_FE_FE_00_FE_82_82_82_82_82_FE_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_1C(256'h20_40_80_00_D8_FC_FE_FE_00_00_00_00_01_07_1F_3F_00_20_00_0C_0C_00_20_00_00_20_00_00_00_00_20_00),
.INIT_1D(256'h07_07_0F_0F_0F_1F_1F_1F_00_FE_C0_C0_FC_C0_C0_FE_40_30_50_22_38_1E_04_00_19_04_16_05_0A_00_00_00),
.INIT_1E(256'h01_01_01_00_00_00_00_00_C0_C0_C0_A0_00_80_E0_E0_1F_0F_2F_27_03_00_01_01_80_C0_C0_C0_80_80_80_80),
.INIT_1F(256'h00_C6_CE_DE_FE_F6_E6_C6_FC_FC_FC_F8_F8_70_C0_00_2F_2F_33_11_19_0E_03_00_FC_E0_FE_F0_7F_00_00_00),
.INIT_20(256'h00_00_08_04_02_11_09_06_08_0C_14_21_44_88_90_60_9C_9C_C8_E0_30_C8_04_02_7B_77_3B_3C_1F_07_00_00),
.INIT_21(256'hC2_02_02_02_02_04_04_F8_40_40_42_40_50_28_20_1F_E7_07_C7_07_E7_07_06_04_E7_E4_E7_E4_E7_E0_6E_20),
.INIT_22(256'hFC_02_00_00_00_01_01_01_00_00_00_18_18_00_00_00_38_7C_FE_FE_FE_BE_5C_38_00_00_00_00_08_00_00_00),
.INIT_23(256'h24_66_E7_18_18_E7_66_24_00_00_C0_30_98_E8_FC_FC_00_00_03_0E_1F_1F_3F_3F_F0_80_00_00_80_40_F8_C0),
.INIT_24(256'h06_09_11_22_04_08_00_00_60_90_88_44_20_00_00_00_00_C0_F0_38_18_CC_E4_C4_40_23_10_2C_37_7B_7D_7F),
.INIT_25(256'hF8_FE_82_02_02_02_02_C2_1F_7F_41_40_40_42_40_40_FE_00_24_24_00_04_06_07_7F_00_24_24_00_20_60_E0),
.INIT_26(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_80_00_00_00_00_00_20_00_08_02_00_00),
.INIT_27(256'h40_08_04_08_50_20_80_C0_05_08_00_00_41_80_01_8A_C0_80_00_00_00_00_00_00_03_89_04_08_50_20_00_00),
.INIT_28(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_C0_C0_00_00_00),
.INIT_29(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_2A(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_2B(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_2C(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_2D(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_2E(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_2F(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_30(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_31(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_32(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_33(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_34(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_35(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_36(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_37(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_38(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_39(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_3A(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_3B(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_3C(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_3D(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_3E(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00),
.INIT_3F(256'h00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00_00))
bRAM (
.DOB(bdout), // Port B 8-bit Data Output
.ADDRA(baddra), // Port A 11-bit Address Input
.ADDRB(baddrb), // Port B 11-bit Address Input
.CLKA(clk), // Port A Clock
.CLKB(clk), // Port B Clock
.DIA(bdin), // Port A 8-bit Data Input
.DIPA(1'b0), // 1-bit Parity
.ENA(1'b1), // Port A RAM Enable Input
.ENB(1'b1), // Port B RAM Enable Input
.SSRA(1'b0), // Port A Synchronous Set/Reset Input
.SSRB(1'b0), // Port B Synchronous Set/Reset Input
.WEA(bwe), // Port A Write Enable Input
.WEB(1'b0) // Port B Write Enable Input
); //////////////////////////////////////////Display Buffer///////////////////////////////////////////
assign nxt256pix = next256pixel[9:1];
assign cur256line = currline ? ((currline + 1'b1) / 2) : 8'h00;
assign nxt256line = (vcount > 31 && vcount < 512) ? cur256line + 1'b1 : 8'h00; //No color out if not in drawing area.
assign lbrstb = (cur256line && nxt256pix) ? 1'b0 : 1'b1; //Select between odd line buffer and even line buffer
assign lbaddrb[8] = (cur256line % 2 == 1) ? 1'b0 : 1'b1;
assign lbaddrb[7:0] = nxt256pix - 1'b1;
//////////////////////////////////////////Buffer Fill FSM//////////////////////////////////////////
wire leavewait;
wire [1:0]bgatbits;
wire bgptabit;
wire bgptbbit;
reg [4:0]State = 3'b000;
reg [4:0]NextState = 3'b000;
reg [8:0]pix256draw = 9'h000; //Sprite registers and wires.
wire spriteinrange;
wire [7:0]spritex;
wire [7:0]spritey;
wire [7:0]spriteptrn;
wire [1:0]upal;
wire hmirror;
wire vmirror;
wire back;
wire [2:0]invert;
wire [2:0]normal;
wire [10:0]address;
reg spbita = 1'b0;
reg spbitb = 1'b0;
reg [7:0]bfaddr = 8'h00;
reg bs = 1'b0;
reg [7:0]pix = 8'h00; always @(State, leavewait, pix256draw, currsprite, spriteinrange, back) begin
case(State)
WAIT : NextState = leavewait ? NTAT : WAIT;
NTAT : NextState = PTAB;
PTAB : NextState = BUFF;
BUFF : NextState = (pix256draw && (pix256draw < 256)) ? NTAT : NEXT;
NEXT : NextState = SPRAM;
SPRAM: NextState = spriteinrange ? SAB :
(currsprite == 256 && !spriteinrange) ? WAIT :
NEXT;
SAB : NextState = back ? WRIT0 : BUFF0;
WRIT0: NextState = WRIT1;
WRIT1: NextState = WRIT2;
WRIT2: NextState = WRIT3;
WRIT3: NextState = WRIT4;
WRIT4: NextState = WRIT5;
WRIT5: NextState = WRIT6;
WRIT6: NextState = WRIT7;
WRIT7: NextState = BUFF0;
BUFF0: NextState = BUFF1;
BUFF1: NextState = BUFF2;
BUFF2: NextState = BUFF3;
BUFF3: NextState = BUFF4;
BUFF4: NextState = BUFF5;
BUFF5: NextState = BUFF6;
BUFF6: NextState = BUFF7;
BUFF7: NextState = (currsprite == 256) ? WAIT : NEXT;
default : NextState = WAIT;
endcase
end always @(posedge clk) begin
if(!nxt256line)
State <= WAIT;
else
State <= NextState; if(NextState == WAIT) begin
lbwe = 1'b0;
pix256draw <= 9'h000;
currsprite = 9'h000;
bfaddr = 8'h00;
bs <= 1'b0;
end if(NextState == NTAT) begin
lbwe = 1'b0;
pix256draw <= pix256draw + 1;
end if(NextState == PTAB) begin
lbwe = 1'b0;
end if(NextState == BUFF) begin
lbwe = 1'b1;
end if(NextState == NEXT) begin
lbwe = 1'b0;
pix <= 8'h00;
pix256draw <= 9'h000;
currsprite = currsprite + 1;
bfaddr = 8'h00;
bs <= 1'b1;
end if(NextState == SAB) begin
bfaddr = hmirror ? spritex + 7 : spritex;
end if(NextState == WRIT0) begin
bfaddr = hmirror ? spritex + 6 : spritex + 1;
end if(NextState == WRIT1) begin
bfaddr = hmirror ? spritex + 5 : spritex + 2;
if(lbcheck)
pix[0] <= 1'b1;
end if(NextState == WRIT2) begin
bfaddr = hmirror ? spritex + 4 : spritex + 3;
if(lbcheck)
pix[1] <= 1'b1;
end if(NextState == WRIT3) begin
bfaddr = hmirror ? spritex + 3 : spritex + 4;
if(lbcheck)
pix[2] <= 1'b1;
end if(NextState == WRIT4) begin
bfaddr = hmirror ? spritex + 2 : spritex + 5;
if(lbcheck)
pix[3] <= 1'b1;
end if(NextState == WRIT5) begin
bfaddr = hmirror ? spritex + 1 : spritex + 6;
if(lbcheck)
pix[4] <= 1'b1;
end if(NextState == WRIT6) begin
bfaddr = hmirror ? spritex : spritex + 7;
if(lbcheck)
pix[5] <= 1'b1;
end if(NextState == WRIT7) begin
if(lbcheck)
pix[6] <= 1'b1;
end if(NextState == BUFF0) begin
if((!adout[7] && !bdout[7]) || (back && pix[0]))
lbwe = 1'b0;
else
lbwe = 1'b1;
if(lbcheck)
pix[7] <= 1'b1;
bfaddr = hmirror ? spritex + 7 : spritex;
spbita = adout[7];
spbitb = bdout[7];
end if(NextState == BUFF1) begin
if((!adout[6] && !bdout[6]) || (back && pix[1]))
lbwe = 1'b0;
else
lbwe = 1'b1;
bfaddr = hmirror ? spritex + 6 : spritex + 1;
spbita = adout[6];
spbitb = bdout[6];
end if(NextState == BUFF2) begin
if((!adout[5] && !bdout[5]) || (back && pix[2]))
lbwe = 1'b0;
else
lbwe = 1'b1;
bfaddr = hmirror ? spritex + 5 : spritex + 2;
spbita = adout[5];
spbitb = bdout[5];
end if(NextState == BUFF3) begin
if((!adout[4] && !bdout[4]) || (back && pix[3]))
lbwe = 1'b0;
else
lbwe = 1'b1;
bfaddr = hmirror ? spritex + 4 : spritex + 3;
spbita = adout[4];
spbitb = bdout[4];
end if(NextState == BUFF4) begin
if((!adout[3] && !bdout[3]) || (back && pix[4]))
lbwe = 1'b0;
else
lbwe = 1'b1;
bfaddr = hmirror ? spritex + 3 : spritex + 4;
spbita = adout[3];
spbitb = bdout[3];
end if(NextState == BUFF5) begin
if((!adout[2] && !bdout[2]) || (back && pix[5]))
lbwe = 1'b0;
else
lbwe = 1'b1;
bfaddr = hmirror ? spritex + 2 : spritex + 5;
spbita = adout[2];
spbitb = bdout[2];
end if(NextState == BUFF6) begin
if((!adout[1] && !bdout[1]) || (back && pix[6]))
lbwe = 1'b0;
else
lbwe = 1'b1;
bfaddr = hmirror ? spritex + 1 : spritex + 6;
spbita = adout[1];
spbitb = bdout[1];
end if(NextState == BUFF7) begin
if((!adout[0] && !bdout[0]) || (back && pix[7]))
lbwe = 1'b0;
else
lbwe = 1'b1;
bfaddr = hmirror ? spritex : spritex + 7;
spbita = adout[0];
spbitb = bdout[0];
end
end //Determine when it is time to go from WAIT to NTAT.
assign leavewait = (nxt256line && (vcount % 2 == 1'b0) && hcount < 10'h002) ? 1'b1 : 1'b0;
//Name table address.
assign ntaddra = nxt256line ? (32 * ((nxt256line - 1) / 8) + ((pix256draw - 1) / 8)) : 10'h000;
//Attribute table address.
assign bgataddra = nxt256line ? (8 * ((nxt256line - 1) / 8) + ((pix256draw - 1) / 32)) : 10'h000;
//Pattern table addresses.
assign bgptaaddra = pix256draw ? (8 * ntdout + (nxt256line - 1) % 8) :10'h000;
assign bgptbaddra = pix256draw ? (8 * ntdout + (nxt256line - 1) % 8) :10'h000;
//Attribute table bits for palette MUX.
assign bgatbits = (ntaddra % 4 == 2'b00) ? bgatdout[7:6] :
(ntaddra % 4 == 2'b01) ? bgatdout[5:4] :
(ntaddra % 4 == 2'b10) ? bgatdout[3:2] :
bgatdout[1:0];
//Pattern table B bit for palette MUX.
assign bgptbbit = bgptbdout[~(pix256draw - 1) % 8];
//Pattern table A bit for palette MUX.
assign bgptabit = bgptadout[~(pix256draw - 1) % 8];
//Break down the sprite data into its separate parts.
assign spritex = spdout[31:24];
assign spritey = spdout[7:0];
assign spriteptrn = spdout[15:8];
assign spriteinrange = (currsprite && (nxt256line - 1'b1 >= spritey) &&
nxt256line - 1'b1 - spritey < 8) ? 1'b1 : 1'b0;
assign upal = spdout[17:16];
assign hmirror = spdout[22];
assign vmirror = spdout[23];
assign back = spdout[21];
//Get sprite graphic info with or without vertical mirroring.
assign invert = ~(nxt256line - 1'b1 - spritey);
assign normal = (nxt256line - 1'b1 - spritey);
assign address = spriteptrn * 8;
assign aaddrb = address + (vmirror ? invert : normal);
assign baddrb = aaddrb;
//Palette MUX
assign lbdin = ({bs, bgatbits, bgptbbit, bgptabit} == 5'h00) ? bgpal0 :
({bs, bgatbits, bgptbbit, bgptabit} == 5'h01) ? bgpal1 :
({bs, bgatbits, bgptbbit, bgptabit} == 5'h02) ? bgpal2 :
({bs, bgatbits, bgptbbit, bgptabit} == 5'h03) ? bgpal3 :
({bs, bgatbits, bgptbbit, bgptabit} == 5'h04) ? bgpal4 :
({bs, bgatbits, bgptbbit, bgptabit} == 5'h05) ? bgpal5 :
({bs, bgatbits, bgptbbit, bgptabit} == 5'h06) ? bgpal6 :
({bs, bgatbits, bgptbbit, bgptabit} == 5'h07) ? bgpal7 :
({bs, bgatbits, bgptbbit, bgptabit} == 5'h08) ? bgpal8 :
({bs, bgatbits, bgptbbit, bgptabit} == 5'h09) ? bgpal9 :
({bs, bgatbits, bgptbbit, bgptabit} == 5'h0A) ? bgpal10 :
({bs, bgatbits, bgptbbit, bgptabit} == 5'h0B) ? bgpal11 :
({bs, bgatbits, bgptbbit, bgptabit} == 5'h0C) ? bgpal12 :
({bs, bgatbits, bgptbbit, bgptabit} == 5'h0D) ? bgpal13 :
({bs, bgatbits, bgptbbit, bgptabit} == 5'h0E) ? bgpal14 :
({bs, bgatbits, bgptbbit, bgptabit} == 5'h0F) ? bgpal15 :
({bs, upal , spbitb , spbita } == 5'h10) ? sppal0 :
({bs, upal , spbitb , spbita } == 5'h11) ? sppal1 :
({bs, upal , spbitb , spbita } == 5'h12) ? sppal2 :
({bs, upal , spbitb , spbita } == 5'h13) ? sppal3 :
({bs, upal , spbitb , spbita } == 5'h14) ? sppal4 :
({bs, upal , spbitb , spbita } == 5'h15) ? sppal5 :
({bs, upal , spbitb , spbita } == 5'h16) ? sppal6 :
({bs, upal , spbitb , spbita } == 5'h17) ? sppal7 :
({bs, upal , spbitb , spbita } == 5'h18) ? sppal8 :
({bs, upal , spbitb , spbita } == 5'h19) ? sppal9 :
({bs, upal , spbitb , spbita } == 5'h1A) ? sppal10 :
({bs, upal , spbitb , spbita } == 5'h1B) ? sppal11 :
({bs, upal , spbitb , spbita } == 5'h1C) ? sppal12 :
({bs, upal , spbitb , spbita } == 5'h1D) ? sppal13 :
({bs, upal , spbitb , spbita } == 5'h1E) ? sppal14 :
sppal15; //Write to odd or even line buffer.
assign lbaddra[8] = ~lbaddrb[8];
//Line buffer address.
assign lbaddra[7:0] = bs ? bfaddr : pix256draw - 1'b1;
//Determine final pixel color.
assign colorout = (hcount < 112 || hcount > 623 || !currline) ? 8'h00 :
!lbdout ? basecolor :
lbdout; ////////////////////////////////////////////Base Timing////////////////////////////////////////////
always @(posedge clk25MHz) begin
//Horizontal timing.
hcount <= hcount + 1'b1;
if(hcount == 704)
hsync <= 1'b0;
if(hcount == 800) begin
hcount <= 10'h001;
hsync <= 1'b1;
vcount <= vcount + 1'b1;
end //Vertical timing.
if(vcount == 523)
vsync <= 1'b0;
if(vcount == 525) begin
vcount <= 10'h001;
vsync <= 1'b1;
end //Visible pixel counters.
if(hcount >= 47 && hcount <= 686)
nextpixel <= nextpixel + 1;
else
nextpixel <= 0;
if(hcount >= 46 && hcount <= 685)
nextpixel2 <= nextpixel2 + 1;
else
nextpixel2 <= 0; //Visible line counters.
if(vcount >= 33 && hcount == 800)
currline <= currline + 1;
if(vcount >= 513 && hcount == 800)
currline <= 0; //256 resolution pixel counter.
if(hcount >= 109 && hcount <= 621)
next256pixel <= next256pixel + 1;
else
next256pixel <= 1'b0; //Vertical blank.
if(vcount == 514)
vblank <= 1'b1;
else
vblank <= 1'b0; //Draw linebuffer data to screen.
vga <= colorout;
end endmoduleuart.v
`timescale 1ns / 1ps module uart(
input clk,
input reset,
input [15:0] id,
input [15:0] din,
input write,
input rx,
output reg tx = 1'b1,
output [7:0]dout,
output reg [11:0]rxcount = 12'h000,
output reg [11:0]txcount = 12'h000
); parameter initbaud = 16'd5244; //Default 9600 baud. parameter setBaud = 16'h0200;
parameter txStoreByte = 16'h0201;
parameter txFlush = 16'h0202;
parameter txPurge = 16'h0203;
parameter rxNextByte = 16'h0204;
parameter rxPurge = 16'h0205; parameter TXREADY = 4'h0;
parameter TXSYNC = 4'h1;
parameter TXSTART = 4'h2;
parameter TXB0 = 4'h3;
parameter TXB1 = 4'h4;
parameter TXB2 = 4'h5;
parameter TXB3 = 4'h6;
parameter TXB4 = 4'h7;
parameter TXB5 = 4'h8;
parameter TXB6 = 4'h9;
parameter TXB7 = 4'hA;
parameter TXSTOP = 4'hB; parameter RXREADY = 4'h0;
parameter RXSTART = 4'h1;
parameter RXB0 = 4'h2;
parameter RXB1 = 4'h3;
parameter RXB2 = 4'h4;
parameter RXB3 = 4'h5;
parameter RXB4 = 4'h6;
parameter RXB5 = 4'h7;
parameter RXB6 = 4'h8;
parameter RXB7 = 4'h9;
parameter RXSTOP = 4'hA;
parameter RXSTORE = 4'hB; reg [3:0]txstate = TXREADY;
reg [3:0]txnextstate = TXREADY; reg [3:0]rxstate = RXREADY;
reg [3:0]rxnextstate = RXREADY; //baudreg calculation is as follows:
//Clock frequency / desired baud rate / 2.
reg [15:0]txbaudreg = initbaud;
reg [17:0]txcountreg = 18'h00000; //Counts system clock cycles to generate baud clock.
reg baudclock = 1'b0; //Used to time data out. reg [15:0]rxbaudcntr = 16'h0000; reg [10:0]txstartreg = 11'h000;
reg [10:0]txendreg = 11'h000; //Tx buffer regs. reg [10:0]rxstartreg = 11'h000;
reg [10:0]rxendreg = 11'h000; //Rx buffer regs. reg baudthis = 1'b0;
reg baudlast = 1'b0;
reg baudpostrans = 1'b0; reg rxthis = 1'b0;
reg rxlast = 1'b0;
reg rxnegtrans = 1'b0; reg nbwait = 1'b0; //Wait while user retrieves received byte. reg [7:0]txreg = 8'h00;
reg [7:0]rxreg = 8'h00; wire txwe;
wire rxwe; wire [7:0]txdout;
RAMB16_S9_S9 #(
.INIT_A(9'h000), // Value of output RAM registers on Port A at startup
.INIT_B(9'h000), // Value of output RAM registers on Port B at startup
.SRVAL_A(9'h000), // Port A output value upon SSR assertion
.SRVAL_B(9'h000), // Port B output value upon SSR assertion
.WRITE_MODE_A("WRITE_FIRST"), // WRITE_FIRST, READ_FIRST or NO_CHANGE
.WRITE_MODE_B("WRITE_FIRST"), // WRITE_FIRST, READ_FIRST or NO_CHANGE
.SIM_COLLISION_CHECK("ALL")) // "NONE", "WARNING_ONLY", "GENERATE_X_ONLY", "ALL"
TXRAM (
.DOA(txdout), // Port A 8-bit Data Output
.DOB(), // Port B 16-bit Data Output
.ADDRA(txstartreg), // Port A 11-bit Address Input
.ADDRB(txendreg), // Port B 11-bit Address Input
.CLKA(clk), // Port A Clock
.CLKB(clk), // Port B Clock
.DIA(), // Port A 8-bit Data Input
.DIB(din[7:0]), // Port-B 8-bit Data Input
.DIPA(1'b0), // Port A 1-bit parity Input
.DIPB(1'b0), // Port B 1-bit parity Input
.ENA(1'b1), // Port A RAM Enable Input
.ENB(1'b1), // Port B RAM Enable Input
.SSRA(1'b0), // Port A Synchronous Set/Reset Input
.SSRB(1'b0), // Port B Synchronous Set/Reset Input
.WEA(1'b0), // Port A Write Enable Input
.WEB(txwe) // Port B Write Enable Input
);
RAMB16_S9_S9 #(
.INIT_A(9'h000), // Value of output RAM registers on Port A at startup
.INIT_B(9'h000), // Value of output RAM registers on Port B at startup
.SRVAL_A(9'h000), // Port A output value upon SSR assertion
.SRVAL_B(9'h000), // Port B output value upon SSR assertion
.WRITE_MODE_A("WRITE_FIRST"), // WRITE_FIRST, READ_FIRST or NO_CHANGE
.WRITE_MODE_B("WRITE_FIRST"), // WRITE_FIRST, READ_FIRST or NO_CHANGE
.SIM_COLLISION_CHECK("ALL")) // "NONE", "WARNING_ONLY", "GENERATE_X_ONLY", "ALL"
RXRAM (
.DOA(), // Port A 8-bit Data Output
.DOB(dout), // Port B 16-bit Data Output
.ADDRA(rxendreg), // Port A 11-bit Address Input
.ADDRB(rxstartreg), // Port B 11-bit Address Input
.CLKA(clk), // Port A Clock
.CLKB(clk), // Port B Clock
.DIA(rxreg), // Port A 8-bit Data Input
.DIB(), // Port-B 8-bit Data Input
.DIPA(1'b0), // Port A 1-bit parity Input
.DIPB(1'b0), // Port B 1-bit parity Input
.ENA(1'b1), // Port A RAM Enable Input
.ENB(1'b1), // Port B RAM Enable Input
.SSRA(1'b0), // Port A Synchronous Set/Reset Input
.SSRB(1'b0), // Port B Synchronous Set/Reset Input
.WEA(rxwe), // Port A Write Enable Input
.WEB(1'b0) // Port B Write Enable Input
); assign txwe = (write && id == txStoreByte) ? 1'b1 : 1'b0;
assign rxwe = (rxstate == RXSTOP) ? 1'b1 : 1'b0; always @(posedge clk) begin
txcountreg <= txcountreg + 1'b1;
txstate <= txnextstate;
rxstate <= rxnextstate; //Keep track of baud clock edges.
baudthis <= baudclock;
baudlast <= baudthis; //Keep track of rx edges
rxthis <= rx;
rxlast <= rxthis; //Keep track of rx negative edge.
if(rxlast && !rxthis)
rxnegtrans <= 1'b1;
else
rxnegtrans <= 1'b0; //Keep track of baud clock positive edge.
if(!baudlast && baudthis)
baudpostrans <= 1'b1;
else
baudpostrans <= 1'b0; //Reset all registers to defaults.
if(reset) begin
txcountreg <= 18'h00000;
rxstartreg <= 11'h000;
txstartreg <= 11'h000;
txbaudreg <= initbaud;
baudclock <= 1'b0;
txendreg <= 11'h000;
rxendreg <= 11'h000;
txstate <= TXREADY;
rxstate <= RXREADY;
txcount <= 10'h000;
rxcount <= 10'h000;
txreg <= 8'h00;
rxreg <= 8'h00;
tx <= 1'b1;
end if(txstate == TXREADY || txstate == TXSYNC)
tx <= 1'b1; if(txcountreg == txbaudreg) begin
baudclock <= ~baudclock;
txcountreg <= 18'h00000;
end if(id == setBaud && write)
txbaudreg <= din; if(id == txStoreByte && write) begin
txendreg <= txendreg + 1;
if(txcount < 2048) //Still room in buffer.
txcount <= txcount + 1;
else //No room in buffer. Overwrite oldest byte.
txstartreg <= txstartreg + 1;
end if(nbwait) begin
rxstartreg <= rxstartreg + 1;
rxcount <= rxcount - 1;
nbwait <= nbwait + 1;
end if(id == rxNextByte && write && rxcount) begin
nbwait <= 1'b1;
end if(id == txPurge && write) begin
txendreg <= 0;
txstartreg <= 0;
txcount <= 0;
end if(id == rxPurge && write) begin
rxendreg <= 0;
rxstartreg <= 0;
rxcount <= 0;
end if(txstate == TXSTART) begin
txreg <= txdout;
tx <= 1'b0;
end if(txstate == TXB0)
tx <= txreg[0]; if(txstate == TXB1)
tx <= txreg[1]; if(txstate == TXB2)
tx <= txreg[2]; if(txstate == TXB3)
tx <= txreg[3]; if(txstate == TXB4)
tx <= txreg[4]; if(txstate == TXB5)
tx <= txreg[5]; if(txstate == TXB6)
tx <= txreg[6]; if(txstate == TXB7)
tx <= txreg[7]; if(txstate == TXSTOP) begin
tx <= 1'b1;
end if(txnextstate == TXSTOP && baudpostrans) begin
txcount <= txcount - 1;
txstartreg <= txstartreg + 1;
end if(rxbaudcntr)
rxbaudcntr <= rxbaudcntr - 1; if(rxstate == RXREADY && rxnextstate == RXSTART)
rxbaudcntr <= txbaudreg * 2 + txbaudreg; if(rxstate == RXSTART && rxnextstate == RXB0) begin
rxreg[0] <= rx;
rxbaudcntr <= txbaudreg * 2;
end if(rxstate == RXB0 && rxnextstate == RXB1) begin
rxreg[1] <= rx;
rxbaudcntr <= txbaudreg * 2;
end if(rxstate == RXB1 && rxnextstate == RXB2) begin
rxreg[2] <= rx;
rxbaudcntr <= txbaudreg * 2;
end if(rxstate == RXB2 && rxnextstate == RXB3) begin
rxreg[3] <= rx;
rxbaudcntr <= txbaudreg * 2;
end if(rxstate == RXB3 && rxnextstate == RXB4) begin
rxreg[4] <= rx;
rxbaudcntr <= txbaudreg * 2;
end if(rxstate == RXB4 && rxnextstate == RXB5) begin
rxreg[5] <= rx;
rxbaudcntr <= txbaudreg * 2;
end if(rxstate == RXB5 && rxnextstate == RXB6) begin
rxreg[6] <= rx;
rxbaudcntr <= txbaudreg * 2;
end if(rxstate == RXB6 && rxnextstate == RXB7) begin
rxreg[7] <= rx;
rxbaudcntr <= txbaudreg * 2;
end if(rxstate == RXSTOP && rxnextstate == RXSTORE) begin
rxendreg <= rxendreg + 1;
if(rxcount < 1024)
rxcount <= rxcount + 1;
end
end always @(*) begin //Transmit finite state machine.
case(txstate)
TXREADY : txnextstate = reset ? TXREADY :
(id == txFlush && write && txcount) ? TXSYNC :
TXREADY;
TXSYNC : txnextstate = baudpostrans ? TXSTART : TXSYNC;
TXSTART : txnextstate = baudpostrans ? TXB0 : TXSTART;
TXB0 : txnextstate = baudpostrans ? TXB1 : TXB0;
TXB1 : txnextstate = baudpostrans ? TXB2 : TXB1;
TXB2 : txnextstate = baudpostrans ? TXB3 : TXB2;
TXB3 : txnextstate = baudpostrans ? TXB4 : TXB3;
TXB4 : txnextstate = baudpostrans ? TXB5 : TXB4;
TXB5 : txnextstate = baudpostrans ? TXB6 : TXB5;
TXB6 : txnextstate = baudpostrans ? TXB7 : TXB6;
TXB7 : txnextstate = baudpostrans ? TXSTOP : TXB7;
TXSTOP : txnextstate = (baudpostrans && txcount) ? TXSTART :
baudpostrans ? TXREADY :
TXSTOP;
default : txnextstate = TXREADY;
endcase
end always @(*) begin //Receive finite state machine.
case(rxstate)
RXREADY : rxnextstate = rxnegtrans ? RXSTART : RXREADY;
RXSTART : rxnextstate = rxbaudcntr ? RXSTART : RXB0;
RXB0 : rxnextstate = rxbaudcntr ? RXB0 : RXB1;
RXB1 : rxnextstate = rxbaudcntr ? RXB1 : RXB2;
RXB2 : rxnextstate = rxbaudcntr ? RXB2 : RXB3;
RXB3 : rxnextstate = rxbaudcntr ? RXB3 : RXB4;
RXB4 : rxnextstate = rxbaudcntr ? RXB4 : RXB5;
RXB5 : rxnextstate = rxbaudcntr ? RXB5 : RXB6;
RXB6 : rxnextstate = rxbaudcntr ? RXB6 : RXB7;
RXB7 : rxnextstate = rxbaudcntr ? RXB7 : RXSTOP;
RXSTOP : rxnextstate = RXSTORE;
RXSTORE : rxnextstate = RXREADY;
default : rxnextstate = RXREADY;
endcase
endendmoduleROMcontroller.v
`timescale 1ns / 1ps module ROMcontroller(
input [15:0]id,
input [15:0]ain,
input clk,
output reg [10:0]aout = 11'h000
); always @(posedge clk) begin
if(id == 16'h0000)
aout <= {3'b000, ain[7:0]};
if(id == 16'h0001)
aout <= {3'b001, ain[7:0]};
if(id == 16'h0002)
aout <= {3'b010, ain[7:0]};
if(id == 16'h0003)
aout <= {3'b011, ain[7:0]};
if(id == 16'h0004)
aout <= {3'b100, ain[7:0]};
if(id == 16'h0005)
aout <= {3'b101, ain[7:0]};
if(id == 16'h0006)
aout <= {3'b110, ain[7:0]};
if(id == 16'h0007)
aout <= {3'b111, ain[7:0]};
endendmoduleMControl.v
`timescale 1ns / 1ps module MControl(
input clk,
input reset,
input serialdata,
output nenable,
output reg sclk = 1'b1,
output reg [11:0]micdata = 12'h000
); parameter WAIT = 2'b00;
parameter GETDATA = 2'b01;
parameter PUTDATA = 2'b10;
parameter QUIET = 2'b11; reg [1:0]clockdivider = 2'b00;
reg [1:0]state = WAIT;
reg [1:0]nextstate = WAIT;
reg [4:0]bitcounter = 5'h00;
reg [11:0]datahold = 12'h000; nand nen(nenable, ~state[1], state[0]); always @(posedge clk) begin
if(!reset)
clockdivider <= clockdivider + 1'b1;
else begin
clockdivider <= 2'b00;
sclk <= 1'b0;
end if(clockdivider == 2'b01)
sclk <= 1'b1;
if(clockdivider == 2'b11)
sclk <= 1'b0;
end always @(posedge sclk) begin
if(reset)
state <= WAIT;
else
state <= nextstate; if(nextstate == GETDATA) begin
bitcounter <= bitcounter + 1'b1;
datahold <= {datahold[10:0], serialdata};
end
if(nextstate == PUTDATA) begin
datahold <= {datahold[10:0], serialdata};
bitcounter <= 5'h00;
end
if(nextstate == WAIT)
micdata <= datahold;
end always @(state, reset, bitcounter) begin
case(state)
WAIT : nextstate = (reset) ? WAIT : GETDATA;
GETDATA : nextstate = (bitcounter == 5'h10) ? PUTDATA : GETDATA;
PUTDATA : nextstate = WAIT;
QUIET : nextstate = WAIT;
endcase
end endmoduleClockControl.v
`timescale 1ns / 1ps //This module controls the timing of the clock and the time change//functions. It takes the 50 MHz system clock in as an input and the//1 KHz clock enable. It also takes the status of the buttons in so//it can set the clock time. The current time of the clock in BCD is//provided on the output. module ClockControl(
input clock,
input ce_1KHz,
input [3:0]button,
output [7:0]hour,
output [7:0]min,
output [7:0]sec,
output blink ); reg ce_1Hz = 1'b0;
reg [9:0]mscounter = 10'h000;
reg [3:0]seclo = 4'h0;
reg [3:0]sechi = 4'h0;
reg [3:0]minlo = 4'h0;
reg [3:0]minhi = 4'h0;
reg [3:0]hourlo = 4'h1;
reg [3:0]hourhi = 4'h0; assign hour = {hourhi, hourlo};
assign min = {minhi, minlo};
assign sec = {sechi, seclo};
assign blink = mscounter[9]; always @(posedge clock) begin
//Reset 1 second clock enable pulse every clock cycle.
ce_1Hz = 1'b0; if(ce_1KHz)
mscounter = mscounter + 1; if(mscounter == 1000) begin
mscounter = 0;
ce_1Hz = 1'b1; //1 second clock enable pulse.
seclo = seclo + 1;
end if(seclo == 10) begin
seclo = 0;
sechi = sechi + 1;
end if(sechi == 6) begin
sechi = 0;
minlo = minlo + 1;
end if(minlo == 10) begin
minlo = 0;
minhi = minhi + 1;
end if(minhi == 6) begin
minhi = 0;
hourlo = hourlo + 1;
end if(hourlo == 10) begin
hourlo = 0;
hourhi = hourhi + 1;
end if(hourhi == 1 && hourlo == 3) begin
hourlo = 4'b0001;
hourhi = 0;
end //Button inputs used to set the clock time.
//Increment the lower minute digit.
if(button == 4'b0001 && ce_1Hz)
minlo = minlo + 1; //Increment the upper minute digit.
if(button == 4'b0010 && ce_1Hz)
minhi = minhi + 1; //Increment the lower hour digit.
if(button == 4'b0100 && ce_1Hz)
hourlo = hourlo + 1;
endendmoduledataMUX.v
`timescale 1ns / 1ps module dataMUX(
input [15:0]xpos,
input [15:0]ypos,
input [15:0]i2cdata,
input [15:0]i2cstatus,
input read,
input blink,
input [15:0]id,
input [15:0]uartdata,
input [11:0]txcount,
input [11:0]rxcount,
input [7:0]romdata,
input [15:0]switches,
input [7:0]sec,
input [7:0]min,
input [7:0]hour,
input [15:0]micdata,
output [15:0]dout ); assign dout = (id == 16'h0001 && read) ? i2cdata :
(id == 16'h0002 && read) ? i2cstatus :
(id == 16'h0003 && read) ? uartdata :
(id == 16'h0004 && read) ? {4'h0, txcount} :
(id == 16'h0005 && read) ? {4'h0, rxcount} :
(id == 16'h0006 && read) ? xpos :
(id == 16'h0007 && read) ? ypos :
(id == 16'h0012 && read) ? {8'h00, romdata} :
(id == 16'h0013 && read) ? switches :
(id == 16'h0030 && read) ? {8'h00, sec} :
(id == 16'h0031 && read) ? {8'h00, min} :
(id == 16'h0032 && read) ? {8'h00, hour} :
(id == 16'h0033 && read) ? {15'h0000, blink} :
(id == 16'h0034 && read) ? micdata :
16'h0000;endmodulediv100k.v
`timescale 1ns / 1ps module div100k( input clock, output reg ce1k = 1'b0 ); reg [17:0]counter = 18'h00000; always @(posedge clock) begin counter <= counter + 1; ce1k <= 0; if(counter == 18'd100681) begin counter <= 18'd0; ce1k <= 1; end end endmodule
FF.v
`timescale 1ns / 1ps //IRQ flipflopmodule FF(input set, input reset, output reg sigout = 1'b0); always @(posedge set, posedge reset) begin if(reset) sigout <= 1'b0; else sigout <= 1'b1; end endmodule
ledio.v
`timescale 1ns / 1ps module ledio( input clk, input reset, input write, input [15:0]id, input [15:0]din, output reg [7:0]ledsout = 8'h00 ); always @(posedge clk) begin if(id == 16'h0020 && write) ledsout <= din[7:0]; if(reset) ledsout <= 8'h00; end endmodule
LEDIO2.v
`timescale 1ns / 1ps module LEDIO2( input clk, input reset, input write, input [15:0]id, input [15:0]din, output reg [7:0]ledsout = 8'h00 ); always @(posedge clk) begin if(id == 16'h0021 && write) ledsout <= din[7:0]; if(reset) ledsout <= 8'h00; endendmodule
seg7io.v
`timescale 1ns / 1ps module seg7io( input clk, input ce1k, input write, input reset, input [15:0]id, input [15:0]din, output reg [3:0]segselect = 4'h0, output reg [7:0]segs = 8'h00 ); reg [7:0]seg0 = 8'h00; reg [7:0]seg1 = 8'h00; reg [7:0]seg2 = 8'h00; reg [7:0]seg3 = 8'h00; always @(posedge ce1k) begin //Constantly cycle through the enable pins. if(segselect == 4'b1110) begin segselect <= 4'b0111; segs <= ~seg0; end else if(segselect == 4'b0111) begin segselect <= 4'b1011; segs <= ~seg1; end else if(segselect == 4'b1011) begin segselect <= 4'b1101; segs <= ~seg2; end else begin segselect <= 4'b1110; segs <= ~seg3; end end always @(posedge clk) begin if(id == 16'h0024 && write) seg0 <= din[7:0]; if(id == 16'h0025 && write) seg1 <= din[7:0]; if(id == 16'h0026 && write) seg2 <= din[7:0]; if(id == 16'h0027 && write) seg3 <= din[7:0]; if(reset) begin seg0 <= 8'h00; seg1 <= 8'h00; seg2 <= 8'h00; seg3 <= 8'h00; end end endmodule
timer.v
`timescale 1ns / 1ps module timer0( input clk, input cein, input write, input [15:0] id, input [15:0] din, input reset, output reg dout = 1'b0 ); reg [15:0] timerreg = 16'h0000; always @(posedge clk) begin dout <= 1'b0; //Load timer bits. if(id == 16'h0010 && write) timerreg <= din; //Decrement timer if not 0. if(cein && timerreg > 1'b1) timerreg <= timerreg - 1'b1; //One timer is about to expire, send output strobe. if(cein && timerreg == 1'b1) begin timerreg <= timerreg - 1'b1; dout <= 1'b1; end //Synchronous reset. if(reset) timerreg <= 16'h0000; end endmodule
timer1.v
`timescale 1ns / 1ps module timer1( input clk, input cein, input write, input [15:0] id, input [15:0] din, input reset, output reg dout = 1'b0 ); reg [15:0] timerreg = 16'h0000; always @(posedge clk) begin dout <= 1'b0; //Load timer bits. if(id == 16'h0011 && write) timerreg <= din; //Decrement timer if not 0. if(cein && timerreg > 1'b1) timerreg <= timerreg - 1'b1; //One timer is about to expire, send output strobe. if(cein && timerreg == 1'b1) begin timerreg <= timerreg - 1'b1; dout <= 1'b1; end //Synchronous reset. if(reset) timerreg <= 16'h0000; end endmodule
lookupROM.coe
memory_initialization_radix = 16;memory_initialization_vector = ; LEDTbl（$ 000） 01，02，04，08，10，20，40，80，40，20，10，08，04，02，01，02， 04，08，10，20，40，80，40 ，20，10，08，04，02，01，02，04，08，10，20，40，80，40，20，10，08，04，02，01，02，04，08，10，20 ，40、80、40、20、10、08、04、02、01，FF，00，FF，00，FF，00，FF， 00，AA，55，AA，55，AA，55，AA，55 ，AA，55，AA，55，AA，55、00、18、3C，7E，FF，00、18、3C，7E，FF，00、18、3C，7E，FF， 00、18、3C，7E ，FF，00、18、3C，7E，FF，00、18、3C，7E，FF ，00、00、00、00、00、00、00、00、00、00、00、00、00、00 ，00，00，00，00，00， 00，00，00，00，00，00，00，00，00，00，00，00，00，00，00，00， 00，00，00，00 ，00、00、00、00、00、00、00、00、00、00、00、00， 00，00，00，00，00，00，00，00，00，00，00，00，00，00，00，00， 00，00，00，00，00，00，00，00，00， 00，00，00，00，00，00，00， 00，00，00，00，00，00，00，00，00，00，00，00，00，00，00，00， 00，00， 00，00，00，00，00，00，00，00，00，00，00，00，00，00， 00，00，00，00，00，00，00，00，00，00，00， 00，00，00，00，00， 00，00，00，00，00，00，00，00，00，00，00，00，00，00，00，00， ; TimeLoTbl（$ 100）50，50，50，50，50，50，50，50，50，50，50，50，50，50，50，50，50，50，50，50，50，50，50 ，50，50，50，50，50，50，50，50，50，50，50，50，50，50，50，50，50，50，50，50，50，50，50，50，50 ，50、50、50、50、50、50、50、50、50，FF，FF，FF，FF，FF，FF， FF，FF，FF，A0，A0，A0，A0，A0，A0，A0，A0 ，A0，A0，A0，A0，A0，A0，A0， A0，A0，A0，A0，A0，A0，A0，A0，A0，A0，A0，A0，A0，A0，A0，A0， A0，A0 ，A0，A0，A0，A0，A0，A0，A0，A0，A0，A0，A0，00，00，00， 00，00，00，00，00，00，00，00，00，00，00 ，00，00，00，00，00， 00，00，00，00，00，00，00，00，00，00，00，00，00，00，00，00， 00，00，00，00 ，00、00、00、00、00、00、00、00、00、00、00、00， 00，00，00，00，00，00，00，00，00，00，00，00，00，00，00，00， 00，00，00，00，00，00，00，00，00， 00，00，00，00，00，00，00， 00，00，00，00，00，00，00，00，00，00，00，00，00，00，00，00， 00，00， 00，00，00，00，00，00，00，00，00，00，00，00，00，00， 00，00，00，00，00，00，00，00，00，00，00， 00，00，00，00，00， 00，00，00，00，00，00，00，00，00，00，00，00，00，00，00，00， ; Seg7IndexTbl（$ 200） 1C，1E，1B，0E，10，05，05，1B，1E，22，1B，1A，18，16，如图1A所示，10，23，23，23，00，01，02，03 ， 04，05，06，07，08，09，23，23，23，1C，1E，1B，00，00，00，00，00，00，00，00，00，00，00，00，00 ， 00，00，00，00，00，00，00，00，00，00，00，00，00，00，00，00， 00，00，00，00，00，00，00，00，00 ，00，00，00，00，00，00，00， 00，00，00，00，00，00，00，00，00，00，00，00，00，00，00，00， 00，00 ，00，00，00，00，00，00，00，00，00，00，00，00，00，00， 00，00，00，00，00，00，00，00，00，00，00 ，00，00，00，00，00， 00，00，00，00，00，00，00，00，00，00，00，00，00，00，00，00， 00，00，00，00 ，00、00、00、00、00、00、00、00、00、00、00、00， 00，00，00，00，00，00，00，00，00，00，00，00，00，00，00，00， 00，00，00，00，00，00，00，00，00， 00，00，00，00，00，00，00， 00，00，00，00，00，00，00，00，00，00，00，00，00，00，00，00， 00，00， 00，00，00，00，00，00，00，00，00，00，00，00，00，00， 00，00，00，00，00，00，00，00，00，00，00， 00，00，00，00，00， 00，00，00，00，00，00，00，00，00，00，00，00，00，00，00，00， ; Seg7Tbl（$ 300） 3F，06，5B，4F，66，6D，7D，07，7F，67，77，5F，图7C，39，58，如图5E所示，79，7B，71，6F，76，74，04 ，1E，38、37、54、5C，73、31、50、3E， 1C，6E，00、80、00、00、00、00、00、00、00、00、00、00、00、00 ， 00，00，00，00，00，00，00，00，00，00，00，00，00，00，00，00， 00，00，00，00，00，00，00，00，00 ，00，00，00，00，00，00，00， 00，00，00，00，00，00，00，00，00，00，00，00，00，00，00，00， 00，00 ，00，00，00，00，00，00，00，00，00，00，00，00，00，00， 00，00，00，00，00，00，00，00，00，00，00 ，00，00，00，00，00， 00，00，00，00，00，00，00，00，00，00，00，00，00，00，00，00， 00，00，00，00 ，00、00、00、00、00、00、00、00、00、00、00、00， 00，00，00，00，00，00，00，00，00，00，00，00，00，00，00，00， 00，00，00，00，00，00，00，00，00， 00，00，00，00，00，00，00， 00，00，00，00，00，00，00，00，00，00，00，00，00，00，00，00， 00，00， 00，00，00，00，00，00，00，00，00，00，00，00，00，00， 00，00，00，00，00，00，00，00，00，00，00， 00，00，00，00，00， 00，00，00，00，00，00，00，00，00，00，00，00，00，00，00，00， ; ClockTbl（$ 400）; 04C，46，46，4D，56，51，50，47，56，41，40，47，5C，57，57，5D，;1FF，44，4D，FF，FF ，50，47，FF，FF，FF，47，FF，FF，FF，55，FF，;244，46，46，4D，4E，61，4A，59，48，5B，60，5F，5C ，57，57，72，;344，46，46，4D，62，61，4A，59，63，60，5A，49，54，57，57，5D，;470，64，65，66 ，67，68，69，6A，6B，60，6C，6D，FF，FF，71，6E，;573，46，46，45，74，61，61，4F，63，60，5A，49 ，54、57、57、5D，;64C，46、46、45、56、42、61、4F，56、52、5A，49、5C，57、57、5D，;744，46、46 ，4D，FF，FF，50、47，FF，FF，FF，47，FF，FF，FF，55，;84C，46、46、4D，58、4B，4A，59、48、5B，5A ，49、5C，57、57、5D，; 94C，46、46、4D，58、4B，43、47、5E，60、53、47、54、57、57、5D 、;空白 FF，FF，FF，FF，FF，FF，FF， FF，FF，FF，FF，FF，FF，FF，FF，FF， 00，00，00，00，00，00，00，00，00，00，00，00，00，00，00，00， 00，00，00，00，00，00，00，00，00， 00，00，00，00，00，00，00， 00，00，00，00，00，00，00，00，00，00，00，00，00，00，00，00， 00，00， 00，00，00，00，00，00，00，00，00，00，00，00，00，00， 00，00，00，00，00，00，00，00，00，00，00， 00，00，00，00，00， ; MessageTbl（$ 500）;活动演示-0A，0C，1D，12、1F，0E，FF，0D，0E，16、18、17、1C，1D，1B，0A， 1D，12、18、17C ，3F，;（$ 516）;平时时钟 1D，12，15，0E ，0D，FF，0C，15，18，0C ，14，;（$ 521）; SPRITE AUDIO 1C，19，1B ，12，1 ，D ，0E ，FF，0A，1E，0D，12，18 ，;（$ 52D）;基色 0B，0A，1C，0E，FF，0C，18，15，18，1B ，;（$ 537）;弹跳 0B， 18，1E，17，0C，12，17，10，FF，1C，19，1B，12，1D，0E，1C，;（$ 547）;属性表 0A，1D，1D，1B，12，0B，1E ，1D，0E，FF，1D，0A，0B，15，0E，;（$ 556）; SPRITE PRIORITY1C，19，1B ，12，1D，0E，FF，19，1B，12，18，1B，12， 1D，22，;（$ 565）;调色板更改19，0A ，15，0E ，1D，1D，0E，FF，0C，11，0A ，17，10，0E ，;（$ 573）; SPRITE MIRRORING 1C，19，1B ，12， 1D，0E，FF，16，12，1B，1B，18，1B，12，17，10;（$ 583） 00，00，00，00，00，00，00，00，00，00，00，00 ，00， 00，00，00，00，00，00，00，00，00，00，00，00，00，00，00，00， 00，00，00，00，00，00，00，00 ，00，00，00，00，00，00，00，00， 00，00，00，00，00，00，00，00，00，00，00，00，00，00，00，00， 00 ，00，00，00，00，00，00，00，00，00，00，00，00，00，00，00， 00，00，00，00，00，00，00，00，00，00 ，00，00，00，00，00，00， 00，00，00，00，00，00，00，00，00，00，00，00，00，00，00，00， 00，00，00 ，00、00、00、00、00、00、00、00、00、00、00、00、00， ; PaletteTbl（$ 600）00、38、20、18、00、3F，24、1B，00、52，A4，FF，00、07、04、03、00、26、3F，02、00 ，C4，C2 ，82、00、60，A0、20、00、0B，19、5D ，00、00、00、00、00、00、00、00、00、00、00、00、00、00、00、00 ， 00，00，00，00，00，00，00，00，00，00，00，00，00，00，00，00， ; SamusTbl（$ 640）D0，00，D0，01，D8，10，D8，11，E0，20，E0，21，E0，FF，E8，FF， E8，31，E8，FF，FF，FF，FF ，FF，D0、02，D0、03，D8、12，D8、13，E0、22，E0、23， E0，FF，E8、32，E8、33，E8、34，FF，FF，FF，FF ， D0、00，D0、01，D8、10，D8、11，E0、20， E0、21，E0，FF，E8，FF，E8、31，E8，FF，FF，FF，FF，FF，D0 ，05，D0、06，D8、15，D8、16，E0、25， E0、26，E0、27，E8、35，E8、36，E8，FF，FF，FF，FF，FF， 00，00，00，00，00，00，00，00，00，00，00，00，00，00，00，00， 00，00，00，00，00，00，00，00，00， 00，00，00，00，00，00，00， 00，00，00，00，00，00，00，00，00，00，00，00，00，00，00，00， 00，00， 00，00，00，00，00，00，00，00，00，00，00，00，00，00， 00，00，00，00，00，00，00，00，00，00，00， 00，00，00，00，00， 00，00，00，00，00，00，00，00，00，00，00，00，00，00，00，00， ; SpriteTbl（$ 700） C0，9C，01，28，C0，9D，01，30，C8，9E，01，28，C8，9F，01，30， C0，9F，C1，78，C0，9E，C1 ，80，C8、9D，C1、78，C8、9C， C1、80，C0、9C，01，C8，C0、9D，01，D0，C8、9E，01，C8，C8、9F，01，D0 ， FF，9F，C1，C8，FF，9E，C1，D0，FF，9D，C1，C8，FF，9C，C1，D0， C0、9E，81、28，C0、9F，81、30，C8 ，9C，81、28，C8、9D，81、30，C0、9D，41、78，C0、9C，41、80，C8、9F，41、78，C8、9E，41、80，C0、9E ，81，C8，C0、9F，81，D0，C8、9C，81，C8，C8、9D，81，D0， FF，9D，41，C8，FF，9C，41，D0，FF，9F，41 ，C8，FF，9E，41，D0， C0、9F，C1、28，C0、9E，C1、30，C8、9D，C1、28， C8、9C，C1、30，C0、9C，01、78 ，C0、9D，01、80，C8、9E，01、78，C8、9F，01、80， C0、9F，C1，C8，C0、9E，C1，D0，C8、9D，C1，C8，C8、9C，C1，D0， FF，9C，01，C8，FF，9D，01，D0，FF， 9E，01，C8，FF，9F，01，D0， C0、9D，41、28，C0、9C，41、30，C8、9F，41、28，C8、9E，41、30，C0、9E， 81、78，C0、9F，81、80，C8、9C，81、78，C8、9D，81、80，C0、9D，41，C8，C0、9C，41，D0，C8、9F，41， C8，C8、9E，41，D0， FF，9E，81，C8，FF，9F，81，D0，FF，9C，81，C8，FF，9D，81，D0；
评论
